ATTACK HR buffer tank with an internal domestic hot water tank

30 years of development and manufacturing

ATTACK HR / HRS buffer tank

Heating-water storage and 160 l of domestic hot water.

The HR and HRS tanks combine heating-water storage with an internal enamelled 160-litre domestic hot water tank. A magnesium anode protects the tank from corrosion; the HRS range also includes a solar heat exchanger.

Request a free quote

Category: Buffer tanks

445–1,800 lActual tank capacity

160 lInternal domestic hot water tank

Integratedtank

Robot-weldedHigh-precision welding

Buffer tanks suited to wood boilers

Store heat for when the system needs it

Choose the version based on whether you need heating-water storage only or also a solar circuit.

ATTACK HR / HRS

Buffer tank

The buffer tank helps the boiler operate at full output and higher efficiency. This can reduce fuel consumption and the formation of tar and acids during combustion, helping extend the service life of the boiler and chimney. The robot-welded tank is designed for a long service life. Choose from capacities of 445 to 1,800 litres; each model includes an internal 160-litre tank.

ATTACK HR

HR buffer tank

Along with storing heating water, the ATTACK HR buffer tank also prepares domestic hot water in its integrated enamelled 160-litre tank.

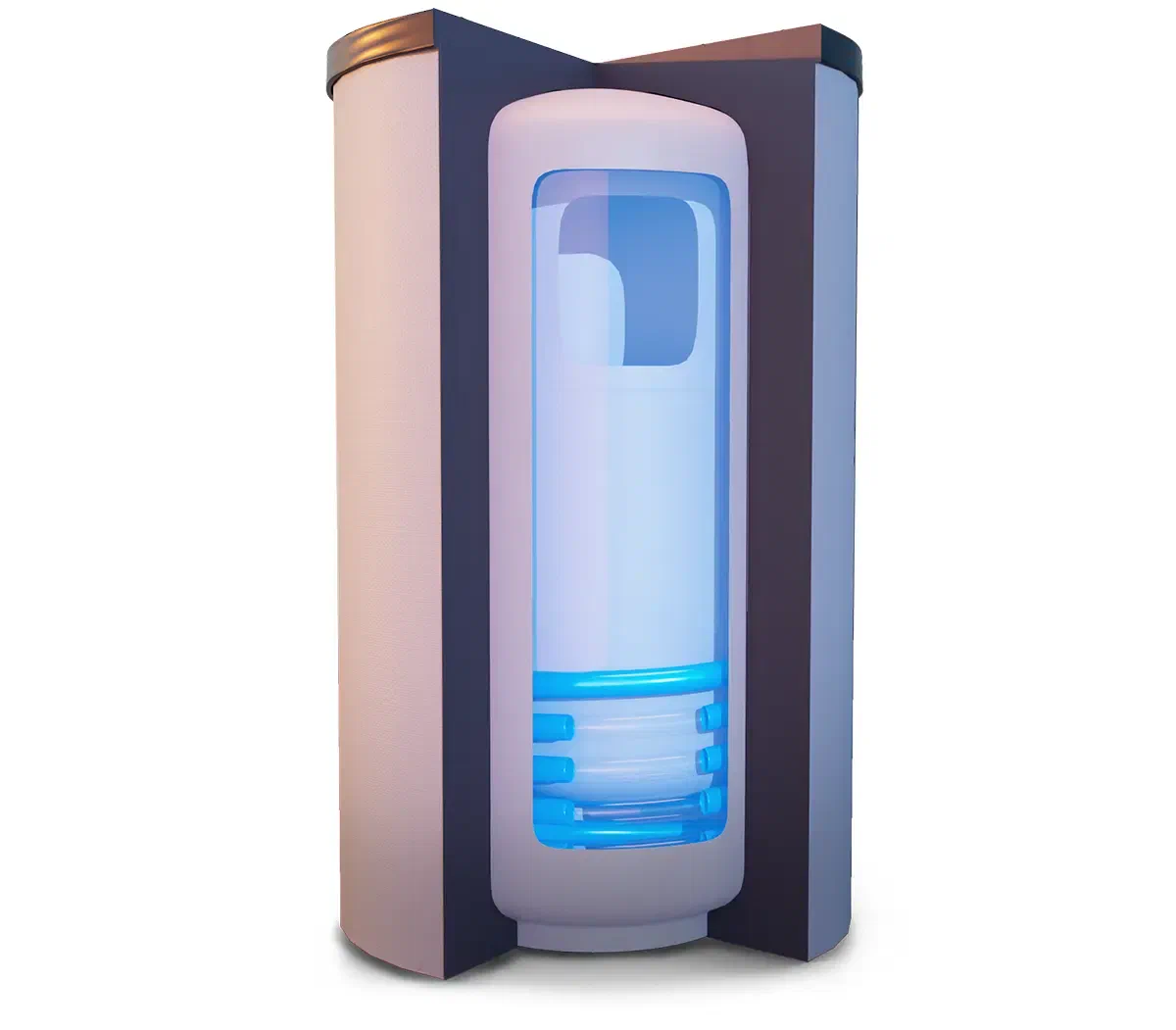

ATTACK HRS

HRS buffer tank

ATTACK HRS combines a buffer tank with an integrated enamelled 160-litre domestic hot water tank. The lower heat exchanger allows a solar system to be connected.

Heating-water storage and domestic hot water

Two tanks in one casing

ATTACK HR and HRS tanks store heating water and also contain a separate internal enamelled tank holding 160 litres of domestic hot water. A magnesium anode helps protect it against corrosion, and a manual air vent is located at the top of the tank.

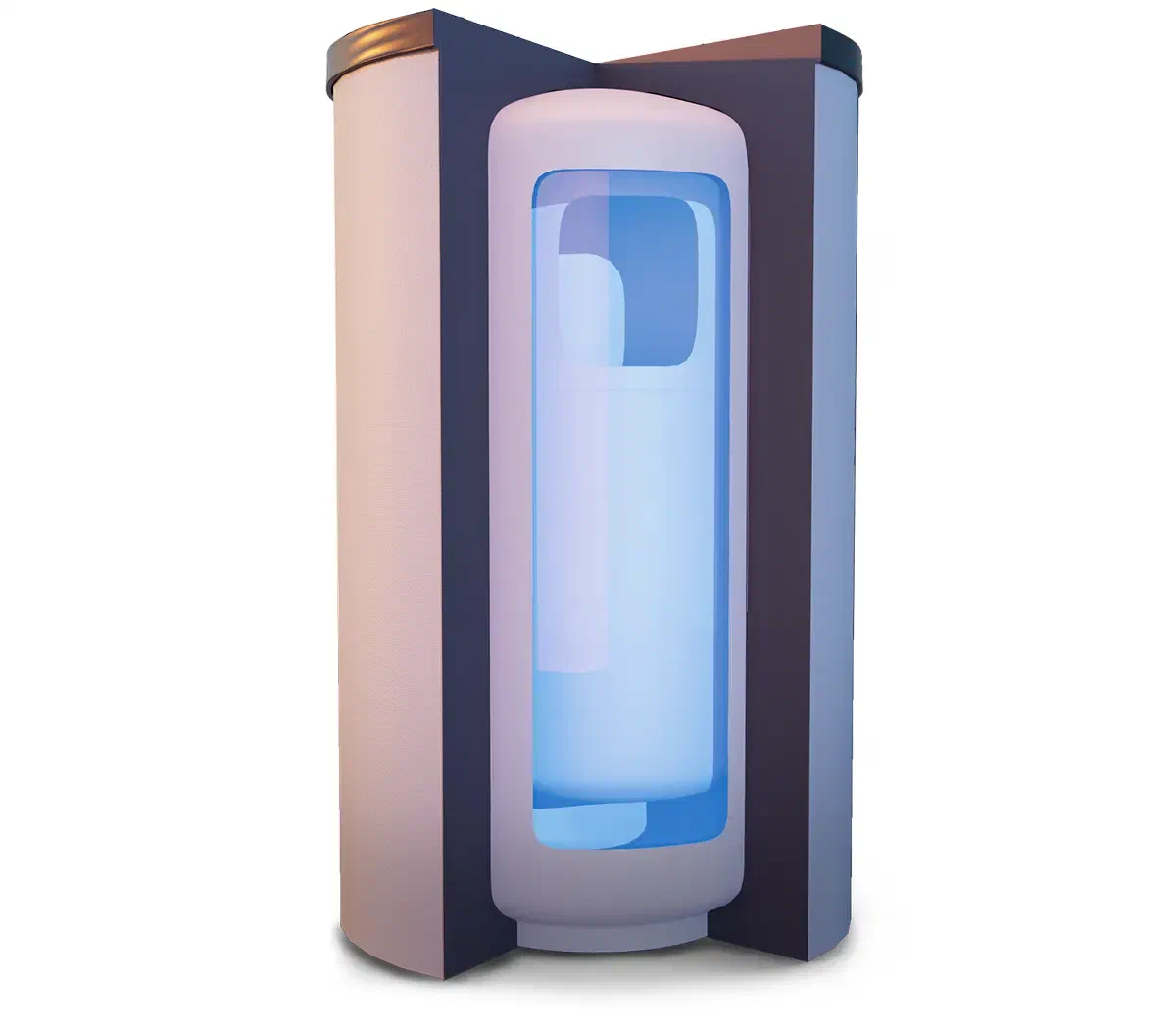

Cutaway of the ATTACK HR buffer tank with an enamelled domestic hot water tank

Heating system with a buffer tank

System combinations

The tank can be integrated into a system with different heat sources and heating circuits.

Buffer tank combined with different heat sources and heating circuits

Different heating options

A buffer tank can be combined with different heating sources, such as electric heating, solar systems, or heat pumps. It can also be used with radiators or underfloor heating.

Buffer-tank insulation in a heating system

Thermal insulation

To help the buffer tank retain heat for as long as possible, every tank is supplied with a soft, removable insulation layer included in the price. The **100 mm** insulation consists of polyester fibre with a durable imitation-leather cover. It is fitted to the tank after installation and helps reduce heat loss.

Robot welding during manufacture of ATTACK tanks

Manufacturing

Precision robot welding

The manufacturer highlights robot welding, quality materials, and its own manufacturing processes.

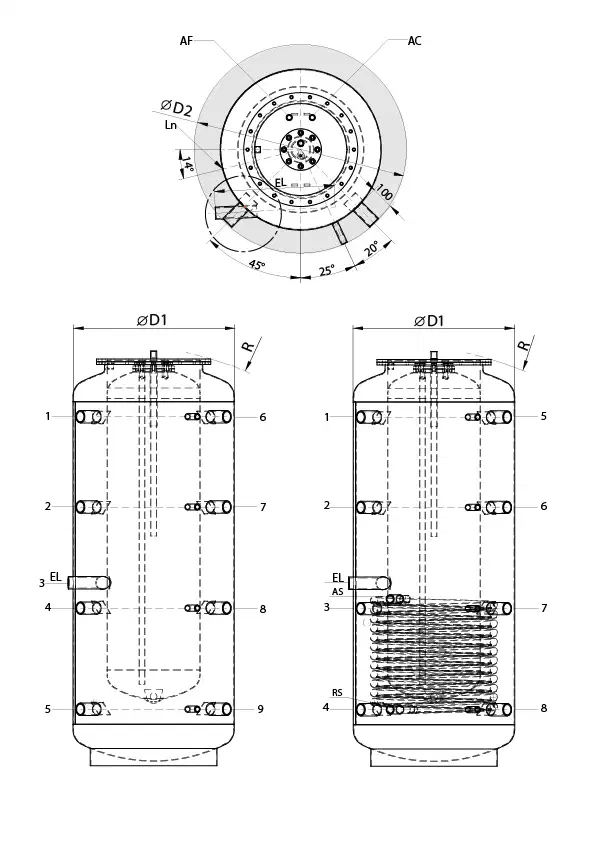

Connection diagram details

HR/HRS connections and dimensions

The diagram shows the HR tank on the left and the HRS tank on the right. Numbers and abbreviations identify the connections and dimensions; select a marker for details.

Connection diagram of ATTACK HR and HRS buffer tanks with marked connections

Komponent 1 / 18

Boiler flow connection

Connection 1 is the boiler flow connection and measures 1½″.

Komponent 2 / 18

Unused connection

Connection 2 is available for use and measures 1½″.

Komponent 3 / 18

Electric immersion heater (EL)

Connection 3 (EL) is for an electric immersion heater and measures 1½″.

Komponent 4 / 18

Unused connection

Connection 4 is available for use and measures 1½″.

Komponent 5 / 18

Heating-circuit return

Connection 5 is the heating-circuit return and measures 1½″.

Komponent 6 / 18

Radiator-circuit flow

Connection 6 is the heating-circuit flow for radiators and measures 1½″.

Komponent 7 / 18

Underfloor-heating circuit flow

Connection 7 is the heating-circuit flow for underfloor heating and measures 1½″.

Komponent 8 / 18

Gas, oil, or pellet boiler return

Connection 8 is the return for a gas, oil, or pellet boiler and measures 1½″.

Komponent 9 / 18

Wood-boiler return

Connection 9 is the wood-boiler return and measures 1½″.

Komponent 10 / 18

Solar-system or heating sensor

Position 10 is for a solar-system or heating sensor and measures ½″.

Komponent AS / 18

Solar-system flow connection

The AS connection is the solar-system flow and measures 1″.

Komponent RS / 18

Solar-system return connection

The RS connection is the solar-system return and measures 1″.

Komponent D1 / 18

Diameter without insulation

D1 indicates the tank diameter without insulation. The dimension depends on the model.

Komponent D2 / 18

Diameter with insulation

D2 indicates the tank diameter with insulation. The exact dimension depends on the model.

Komponent CN / 18

Tank circulation connection

The CN connection is for the tank circulation pump and measures ¾″.

Komponent AF / 18

Cold potable water inlet

The AF connection is the cold potable water inlet and measures ¾″.

Komponent AC / 18

Domestic hot water outlet

The AC connection is the domestic hot water outlet and measures ¾″.

Komponent MA / 18

Magnesium anode

The MA magnesium anode protects the internal enamelled domestic hot water tank against corrosion.

Detailed specifications

Technical data

The table lists technical data for each model from the ATTACK technical catalogue.

Parameter	Unit	HR 600 K	HR 800 K	HR 1000 K	HRS 600 K	HRS 800 K	HRS 1000 K	HRS 1250 K	HRS 1500 K	HRS 2000 K
Position 1–6	mm	1,515	1,545	1,735	1,515	1,545	1,735	1,655	1,755	1,955
Position 2–7	mm	1,123	1,135	1,255	1,123	1,135	1,255	1,175	1,345	1,408
Position 3	mm	794	846	1,036	794	846	1,036	988	1,072	1,314
L – maximum length of electric heating element	mm	650	735	735	650	735	735	880	920	1,000
Position 4–8	mm	684	725	775	684	725	775	695	820	862
Position 5–9	mm	245	315	295	245	315	295	285	375	315
RS position	mm	—	—	—	245	315	295	285	375	315
AS position	mm	—	—	—	725	725	860	850	895	843
Diameter without insulation	mm	700	790	790	700	790	790	950	1,000	1,100
Diameter with 100 mm insulation	mm	900	990	990	900	990	990	1,150	1,200	1,300
Height	mm	1,754	1,806	1,996	1,754	1,806	1,996	1,948	2,032	2,274
Height with 100 mm insulation	mm	1,854	1,906	2,096	1,854	1,906	2,096	2,048	2,132	2,374
R – tilting dimension without insulation	mm	1,841	1,898	2,081	1,841	1,898	2,081	2,064	2,160	2,390
Maximum operating temperature of tank	°C	95	95	95	95	95	95	95	95	95
Maximum operating pressure of tank	bar	3	3	3	3	3	3	3	3	3
Solar heat-exchanger area	m²	—	—	—	1.8	2.4	3	3	3.6	4.2
Solar heat-exchanger volume	l	—	—	—	11.9	15.9	19.8	19.8	19.8	23.7
Maximum operating pressure of solar heat exchanger	bar	—	—	—	10	10	10	10	10	10
Maximum operating temperature of solar heat exchanger	°C	—	—	—	105	105	105	105	105	105
Internal domestic hot water tank volume	l	160	160	160	160	160	160	160	160	160
Maximum operating temperature of internal tank	°C	95	95	95	95	95	95	95	95	95
Maximum operating pressure of internal tank	bar	6	6	6	6	6	6	6	6	6
Tank volume	l	445	553	731	445	553	731	1,079	1,260	1,800
Weight	kg	157	157	172	157	157	172	172	265	296

Product materials

Download documents

ATTACK buffer tank operating manual PDF · English ATTACK boiler hydraulic connection diagrams PDF · Slovak ATTACK AS energy labels PDF · Slovak ATTACK AK energy labels PDF · Slovak ATTACK buffer tank certificate ZSV 0607 PDF · Slovak Technical data PDF
