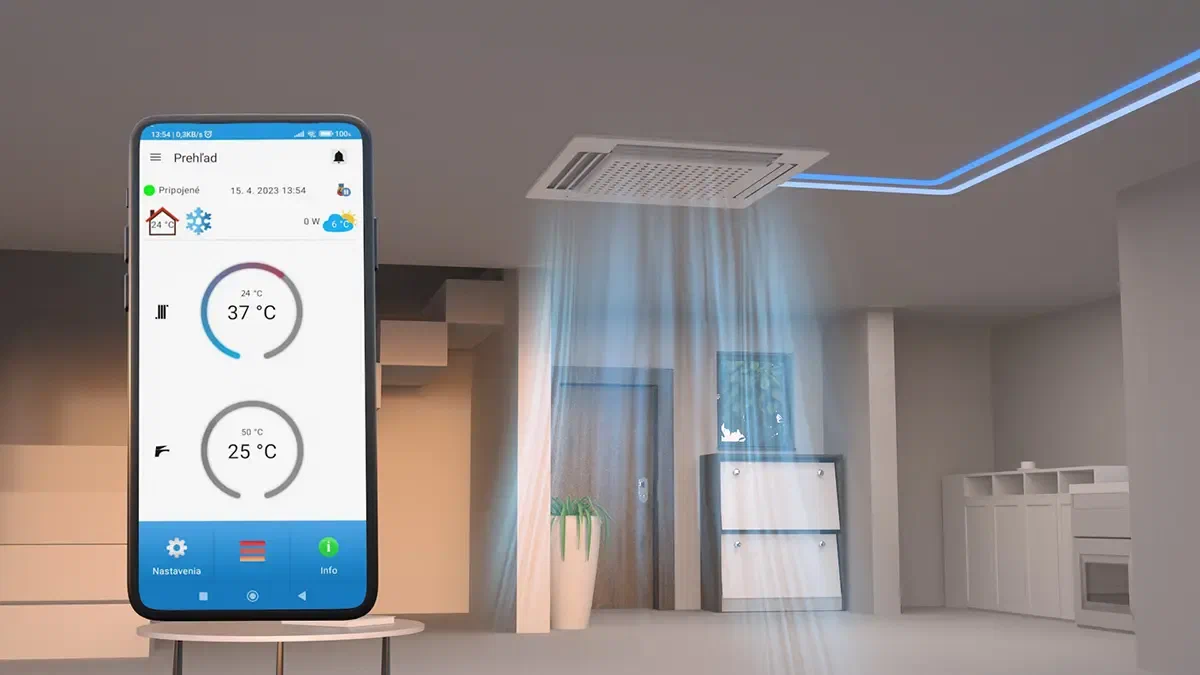

The ATTACK cassette fan coil distributes air in four directions. In a two-pipe heat pump system, it can provide both heating and cooling; ten FCU-C models cover an output range from 2 to 24 kW.
Category: Fan coil units
Discover ATTACK fan coil units
Explore the heating, cooling and control options for the wall-mounted unit.
Year-round use

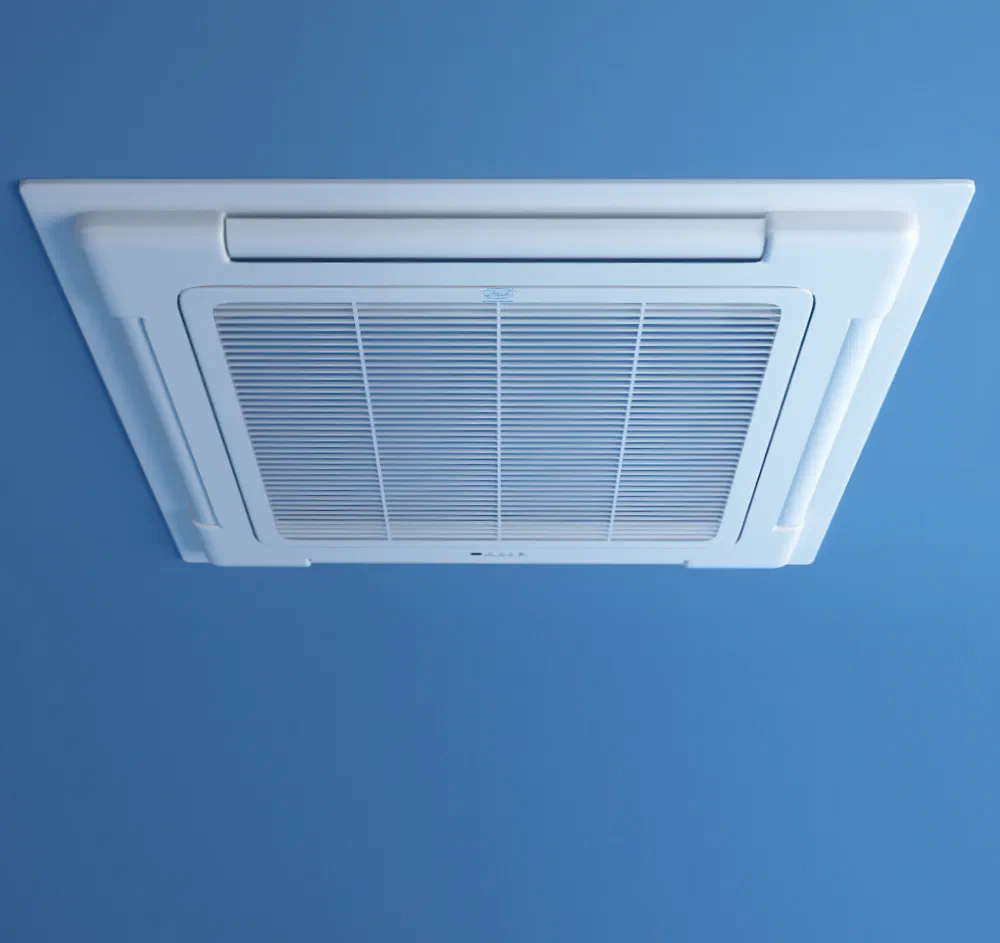

With its four-way outlets, the unit can serve larger spaces while distributing air evenly throughout the room. In family homes, cassette units usually require a lowered ceiling to conceal the working section. Only the visible panel remains below the ceiling, with adjustable louvres controlled by remote.
2–24 kW
Controls
For larger rooms
Cassette unit features

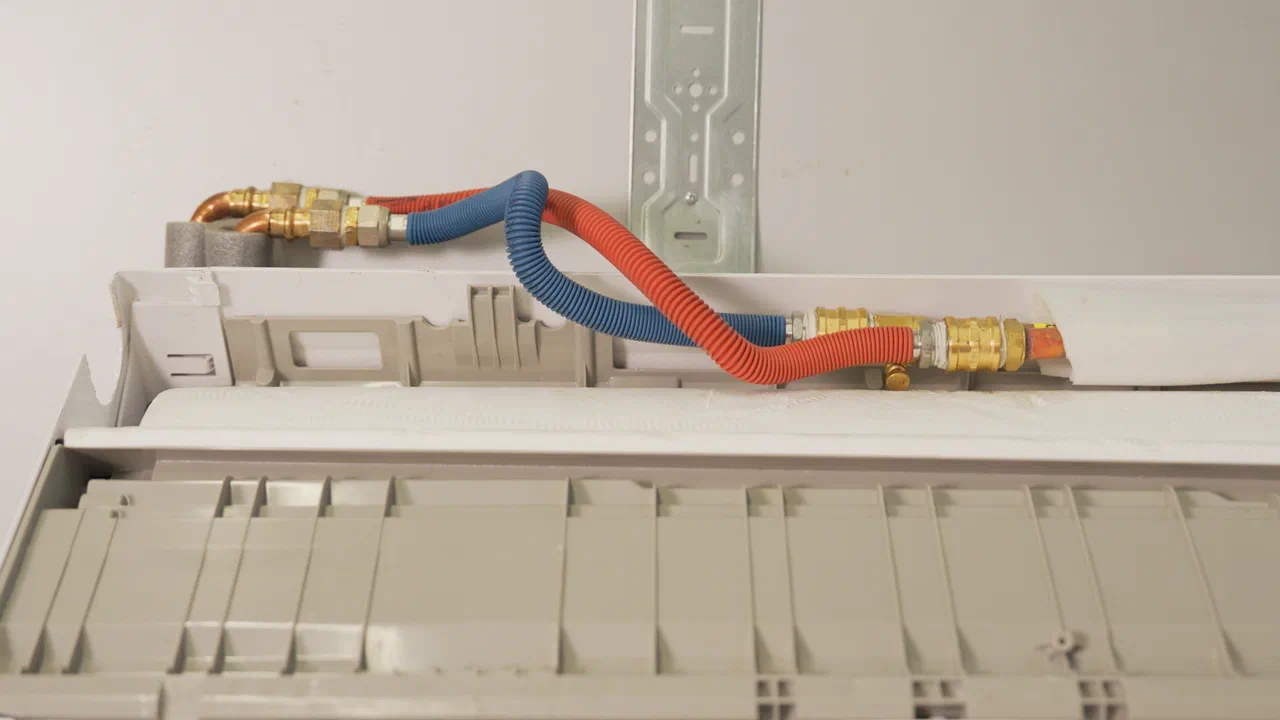

Take a closer look at the two-pipe connection, fan and airflow controls.
Automatic louvre swing
Three fan speeds
External signal
Built-in overflow protection
Airflow
The difference between cassette and wall-mounted units is the direction and distribution of air. A cassette unit distributes air in all directions at lower intensity, while a wall-mounted unit directs the full airflow in one direction.
Remote control

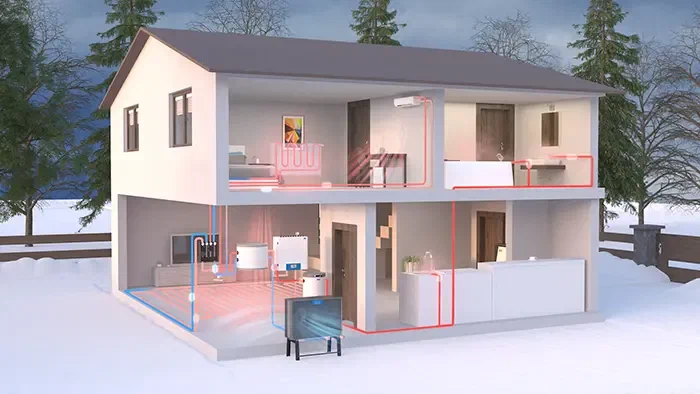

The heat pump can supply hot or chilled water to the fan coil through the heating system. In summer, when hot weather can make indoor spaces uncomfortable, the fan coil helps maintain a comfortable temperature. In winter, its low running costs can make it a more efficient heat source than radiators.
Quiet operation
The fan motor’s position and vibration damping help keep operation quiet across the three fan speeds.
ATTACK FCU cassette unit options

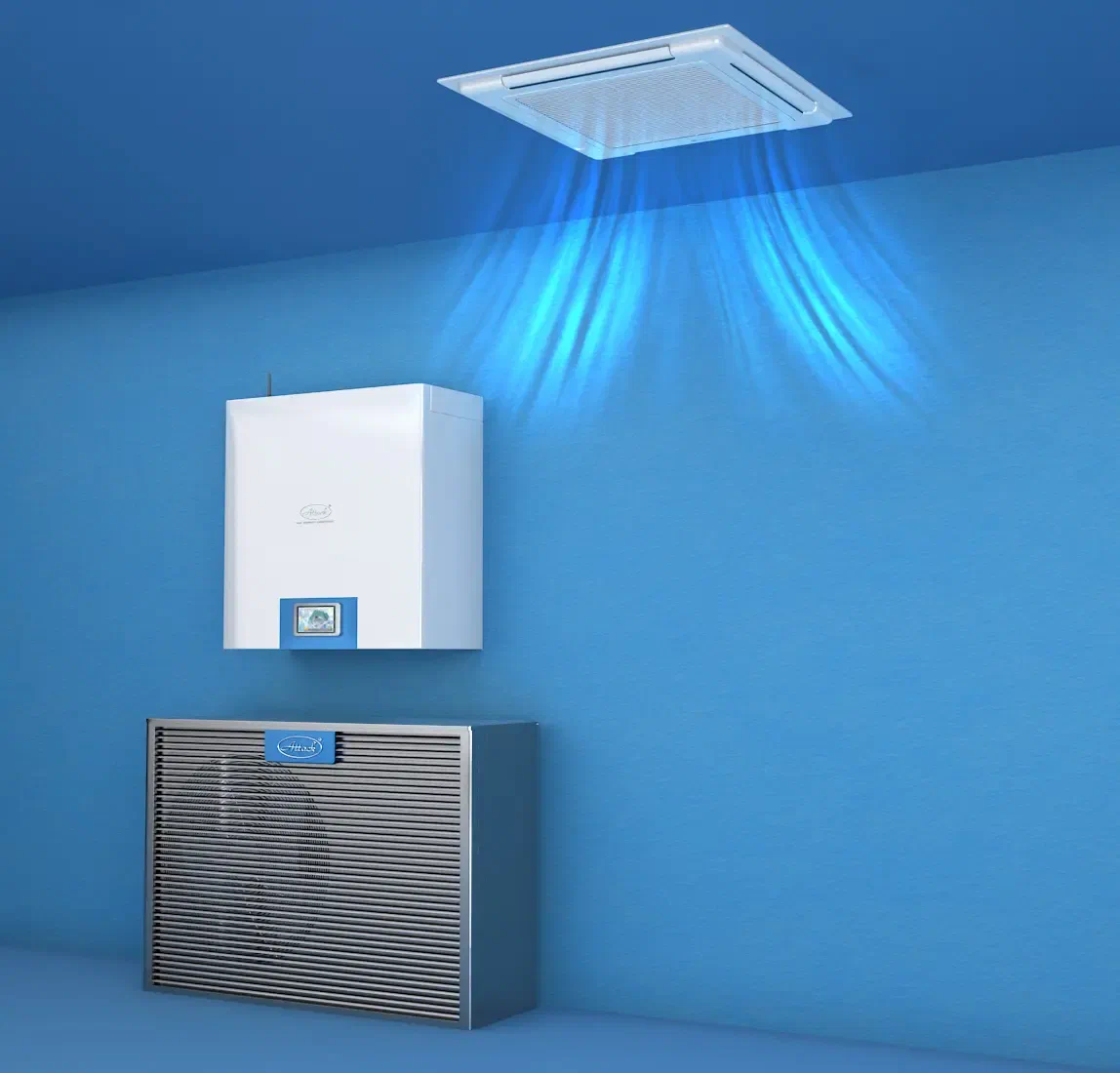

The cassette unit transfers heat or cooling from a heat pump into the room and is installed in a suspended ceiling.
The remote control offers several programmes with timer settings. You can schedule the fan coil to cool or heat at a specific time, for example to cool the house before you return from work. Use the remote to adjust the intensity and direction of the heating or cooling airflow. A fixed wired wall controller can also be installed.
Detailed specifications
Test conditions: two-pipe system. For cooling, entering air is 27 °C dry-bulb / 19.5 °C wet-bulb and water is 7/12 °C. For heating, entering air is 21 °C and water is 60 °C; water flow is the same as for cooling. Noise and electrical input are stated at high fan speed and 0 Pa static pressure.
| Parameter | Unit | FCU-C 2 | FCU-C 3 | FCU-C 4 | FCU-C 5 | FCU-C 6 | FCU-C 8 | FCU-C 10 | FCU-C 11 | FCU-C 12 | FCU-C 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Visible panel designation | — | DC-MB-SA01M1 | DC-MB-SA01M1 | DC-MB-SA01M1 | DC-MB-SA01M2 | DC-MB-SA01M2 | DC-MB-SA01M3 | DC-MB-SA01M3 | DC-MB-SA01M3 | DC-MB-SA01M3 | DC-MB-SA01M4 |
| Power supply | — | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase | 220 V / 50 Hz, 1 phase |
| Air volume flow at high fan speed | m³/h | 380 | 550 | 680 | 880 | 1,050 | 1,380 | 1,750 | 2,050 | 2,200 | 2,720 |
| Air volume flow at medium fan speed | m³/h | 250 | 350 | 400 | 550 | 650 | 850 | 1,050 | 1,250 | 1,300 | 1,650 |
| Air volume flow at low fan speed | m³/h | 150 | 200 | 250 | 300 | 350 | 500 | 600 | 700 | 750 | 950 |
| Static pressure | Pa | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Total cooling capacity at high fan speed | W | 2,000 | 3,000 | 3,800 | 4,900 | 5,800 | 7,500 | 9,800 | 11,000 | 12,000 | 15,000 |
| Sensible cooling capacity at high fan speed | W | 1,400 | 2,200 | 2,850 | 3,500 | 4,250 | 5,500 | 7,150 | 8,250 | 9,100 | 11,175 |
| Total cooling capacity at medium fan speed | W | 1,550 | 2,300 | 2,950 | 3,800 | 4,500 | 5,800 | 7,550 | 8,500 | 9,250 | 11,400 |
| Sensible cooling capacity at medium fan speed | W | 1,050 | 1,600 | 2,100 | 2,600 | 3,150 | 4,100 | 5,350 | 6,150 | 6,850 | 9,000 |
| Total cooling capacity at low fan speed | W | 1,100 | 1,650 | 2,100 | 2,700 | 3,200 | 4,150 | 5,400 | 6,100 | 6,650 | 8,250 |
| Sensible cooling capacity at low fan speed | W | 700 | 1,000 | 1,350 | 1,650 | 2,000 | 2,600 | 3,400 | 3,900 | 4,300 | 6,050 |
| Heating capacity at high fan speed | W | 3,100 | 4,700 | 5,900 | 7,600 | 9,000 | 11,600 | 15,200 | 17,100 | 18,600 | 24,000 |
| Heating capacity at medium fan speed | W | 2,350 | 3,550 | 4,450 | 5,700 | 6,750 | 8,700 | 11,400 | 12,850 | 13,950 | 18,000 |
| Heating capacity at low fan speed | W | 1,700 | 2,600 | 3,250 | 4,200 | 4,950 | 6,400 | 8,350 | 9,400 | 10,250 | 13,200 |
| Noise level at high fan speed | dB(A) | 37 | 39 | 44 | 42 | 45 | 46 | 48 | 50 | 52 | 53 |
| Electrical input at high fan speed | W | 27 | 32 | 38 | 46 | 65 | 85 | 105 | 125 | 135 | 150 |
| Water flow rate | m³/h | 0.34 | 0.51 | 0.65 | 0.83 | 0.99 | 1.28 | 1.67 | 1.87 | 2.04 | 2.55 |
| Pressure drop | kPa | 23 | 27 | 26 | 28 | 27 | 26 | 35 | 36 | 42 | 45 |
| Water inlet connection size | — | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ |
| Water outlet connection size | — | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ | G3/4″ |
| Heat exchanger type | — | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating | High-efficiency copper tube with aluminium fins and hydrophilic coating |
| Condensate drain hose diameter | mm | ø 26 | ø 26 | ø 26 | ø 26 | ø 26 | ø 26 | ø 26 | ø 26 | ø 26 | ø 26 |
| Unit dimensions (L × W × H) | mm | 592 × 592 × 242 | 592 × 592 × 242 | 592 × 592 × 242 | 750 × 750 × 242 | 750 × 750 × 242 | 840 × 840 × 242 | 840 × 840 × 292 | 840 × 840 × 292 | 840 × 840 × 292 | 946 × 946 × 292 |
| Visible panel dimensions (L × W × H) | mm | 650 × 650 × 40 | 650 × 650 × 40 | 650 × 650 × 40 | 850 × 850 × 40 | 850 × 850 × 40 | 950 × 950 × 40 | 950 × 950 × 40 | 950 × 950 × 40 | 950 × 950 × 40 | 1,050 × 1,050 × 40 |
| Unit weight | kg | 17 | 18 | 18 | 22 | 23 | 25 | 26 | 27 | 27 | 32 |
| Visible panel weight | kg | 2.2 | 2.2 | 2.2 | 4.2 | 4.2 | 5 | 5 | 5 | 5 | 6 |
