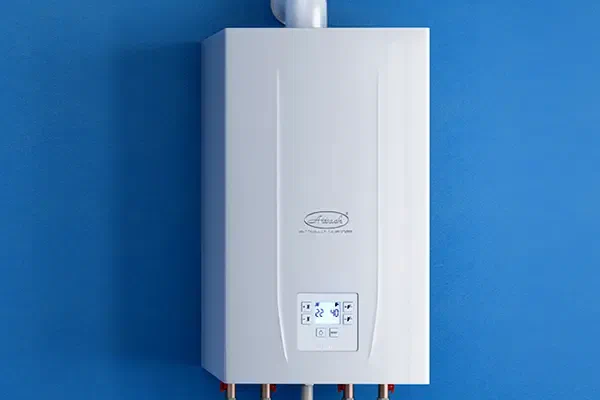

Discover ATTACK Condensing gas boilers

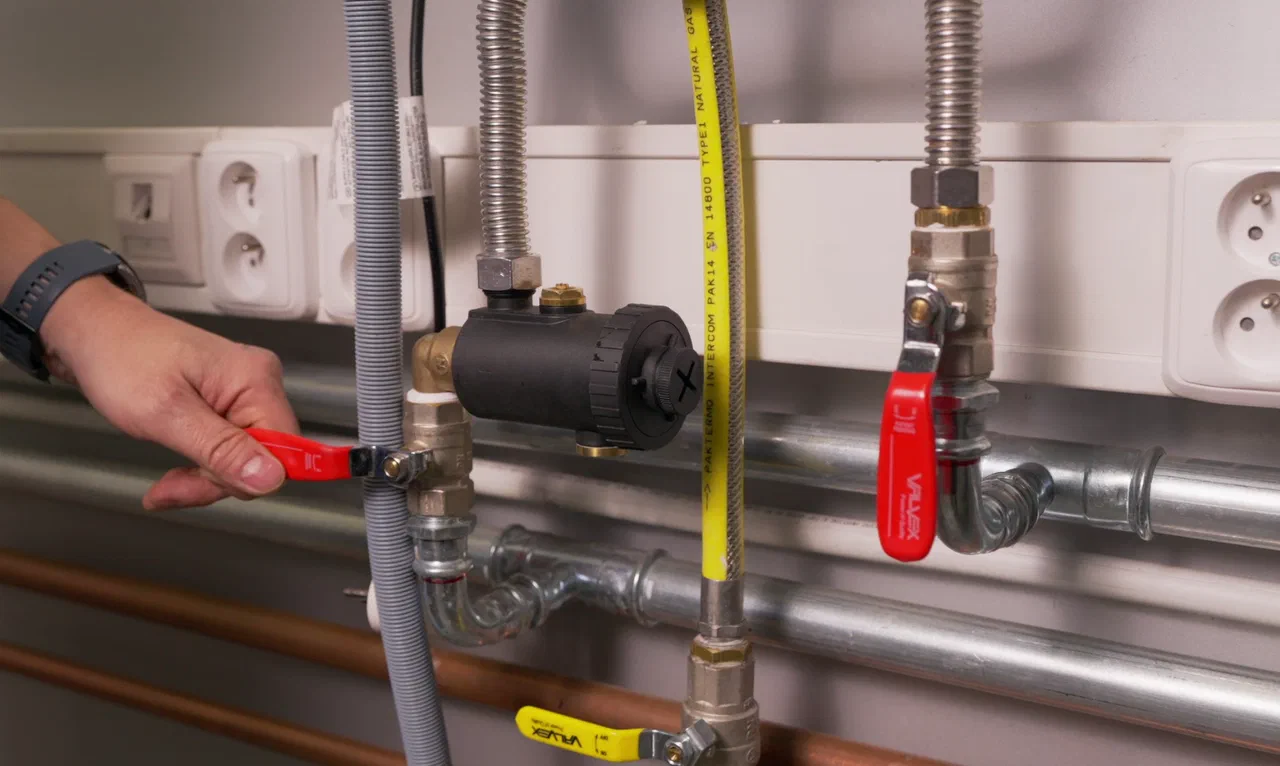

Explore the KT 20 and KT 28 output options, their connections and heating features.
Comfortable heating with hot water

Technical features of ATTACK Condensing KT 20/28

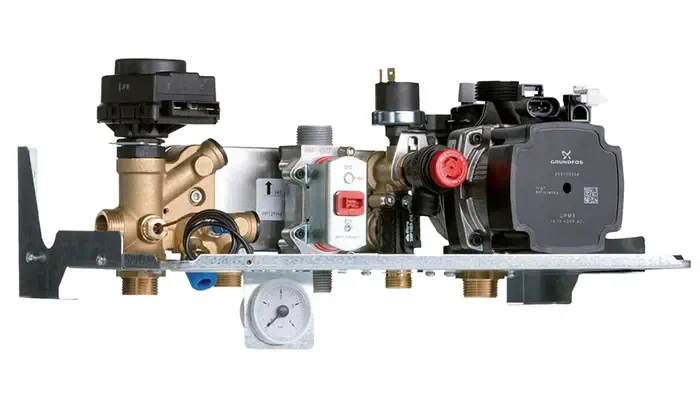

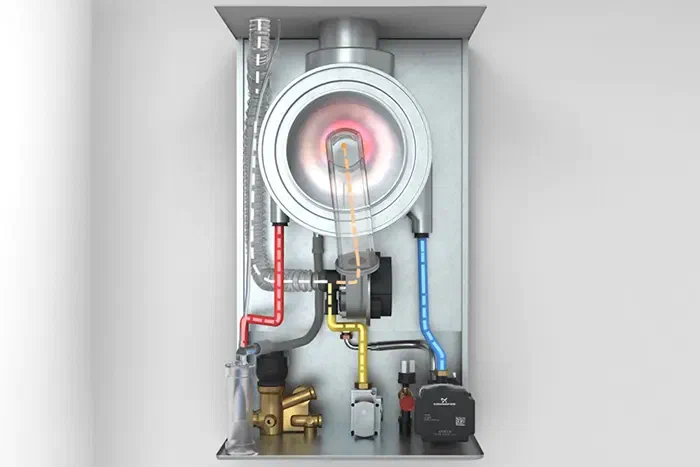

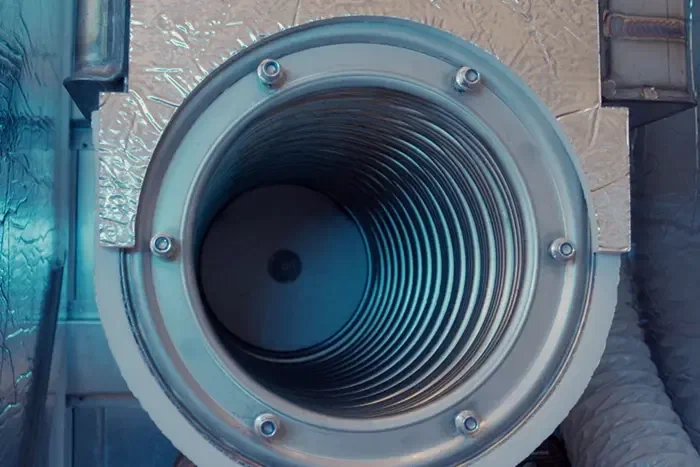

Explore the intelligent combustion system, stainless-steel heat exchanger, quality hydraulic assembly and features that protect the boiler and tank.
Gas boiler options for ATTACK Condensing KT 20/28

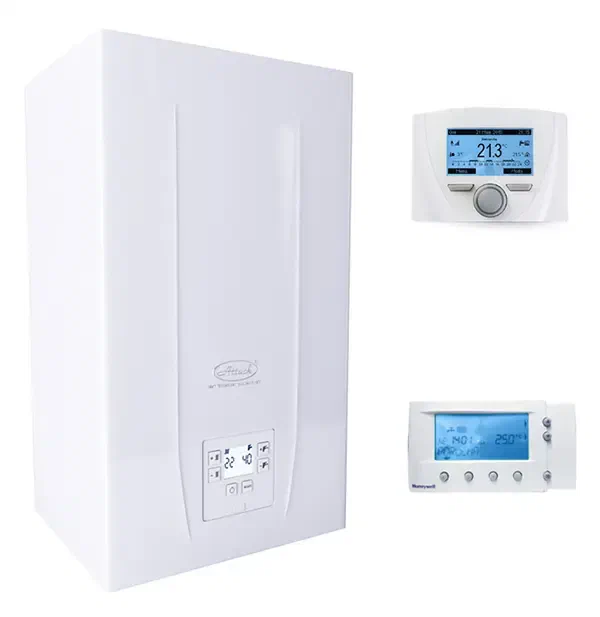

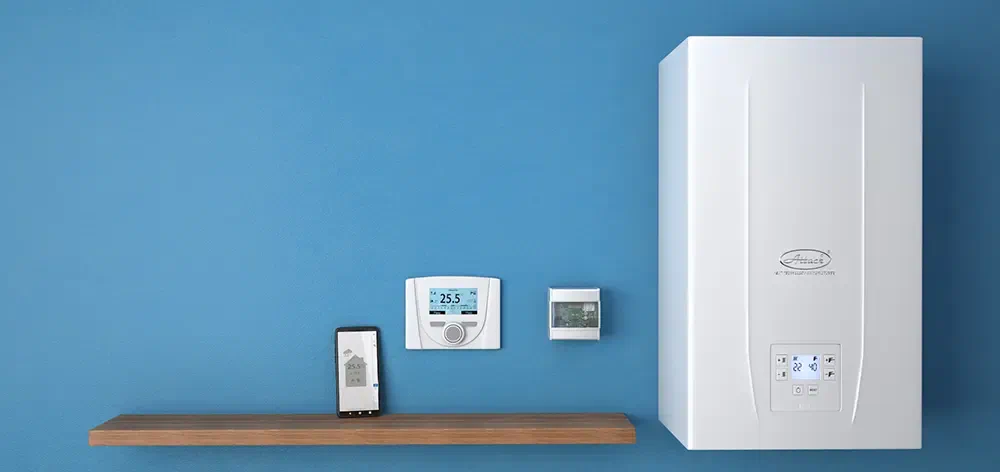

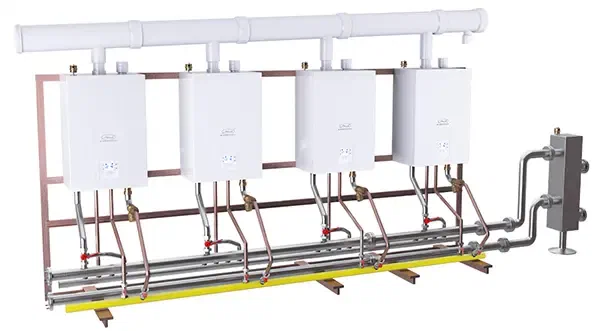

Explore cascade connection and mobile control options for the gas boiler.
Technical information about boiler components

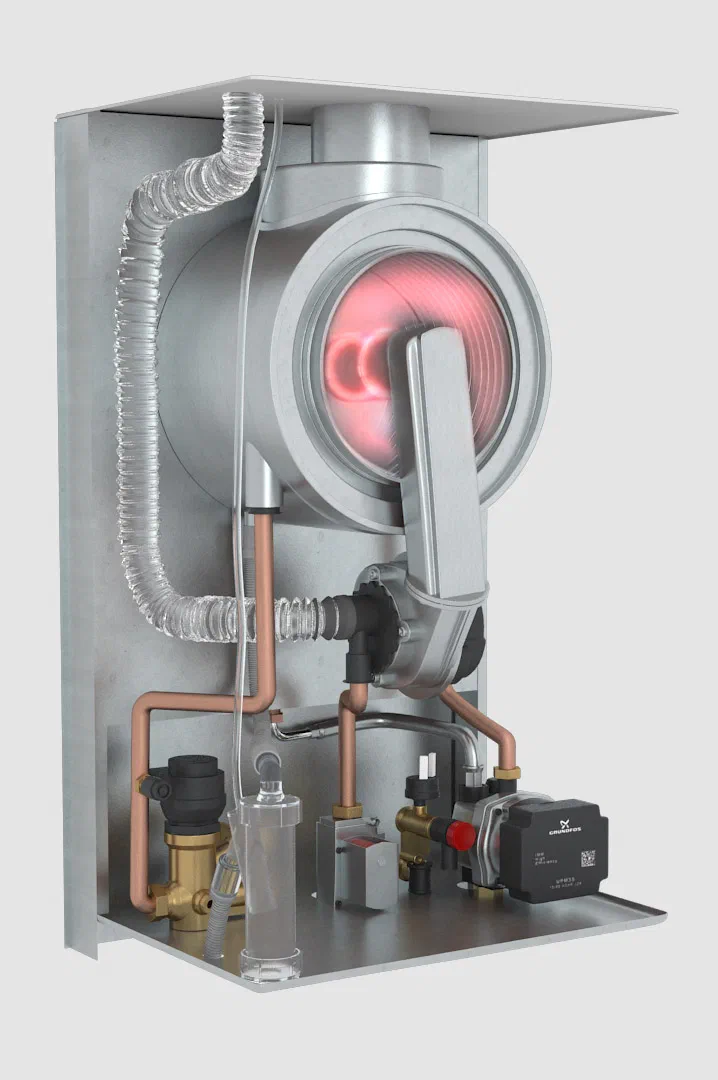

This interactive map is based on the labelled cutaway and component descriptions on the ATTACK product page.
Detailed specifications
Efficiency reaches up to 106%; the energy class is A.
| Parameter | Unit | KT 20 | KT 28 |
|---|---|---|---|
| Maximum central-heating heat input | kW | 25 | 33.2 |
| Minimum central-heating heat input | kW | 2.5 | 3.5 |
| Maximum central-heating output (50/30 °C) / (80/60 °C) | kW | 21/19.4 | 29.5/27.4 |
| Minimum central-heating output (80/60 °C) | kW | 2.4 | 3.3 |
| G20 gas pressure | mbar | 20 | 20 |
| G31 gas pressure | mbar | 37 | 37 |
| NOx emissions class | — | 6 | 6 |
| Maximum/minimum heating operating pressure | bar | 3/1 | 3/1 |
| Heating energy class | — | A | A |
| Ingress protection rating | — | IP X5D | IP X5D |
| Supply voltage | V/Hz | 240/50 | 240/50 |
| Electrical power consumption | W | 73 | 86 |
| Boiler weight without water | kg | 28.1 | 33.4 |
| Dimensions (W × H × D) | mm | 400 × 727 × 324 | 400 × 727 × 324 |
