For homes and apartments

30 years of development and manufacturing
Category: Gas boilers
Discover ATTACK Condensing gas boilers
Explore the KT 20 and KT 28 output options, their connections and heating features.
Heating with on-demand hot water

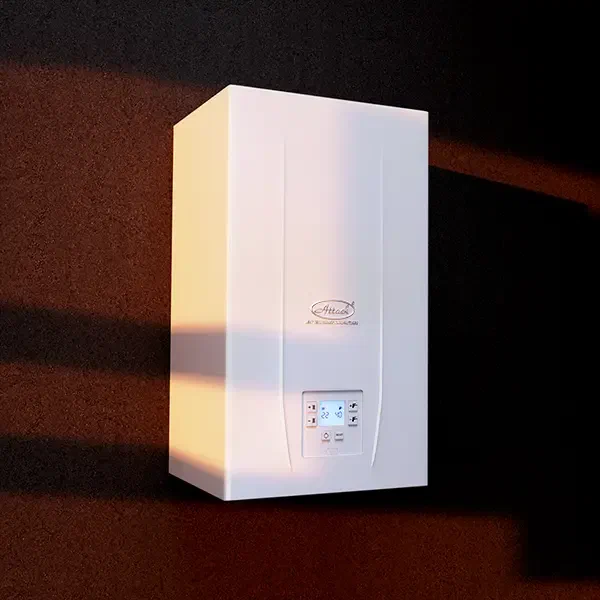

Technical features of ATTACK Condensing KST 24
ISC control, on-demand water heating and weather-compensated control are described on the product page.
ATTACK Condensing KST 24 gas boiler options
Explore cascade connection and mobile control options for the gas boiler.

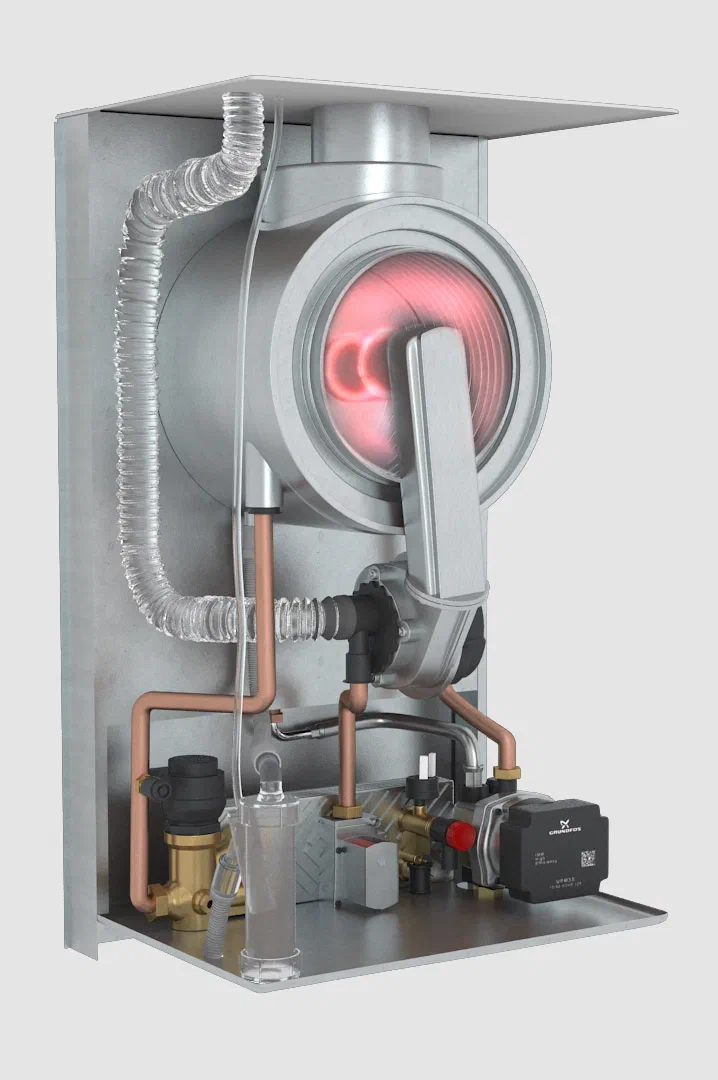

Technical information about boiler components
This interactive map is based on the labelled cutaway and component descriptions on the ATTACK product page.
Detailed specifications
Flow at Δt 30 °C is 13.8 l/min in the table and rounded to 13 l/min in the short description.
| Parameter | Unit | KST 24 |
|---|---|---|
| Maximum central-heating heat input | kW | 30 |
| Minimum central-heating heat input | kW | 3 |
| Maximum central-heating output (50/30 °C) / (80/60 °C) | kW | 25.2/23.3 |
| Minimum central-heating output (80/60 °C) | kW | 2.8 |
| G20 gas pressure | mbar | 20 |
| G31 gas pressure | mbar | 37 |
| NOx emissions class | — | 6 |
| DHW flow rate at Δt 25 °C | l/min | 17 |
| DHW flow rate at Δt 30 °C | l/min | 13.8 |
| Maximum/minimum heating operating pressure | bar | 3/1 |
| Heating energy class | — | A |
| Ingress protection rating | — | IP X5D |
| Supply voltage | V/Hz | 240/50 |
| Electrical power consumption | W | 85 |
| Boiler weight without water | kg | 30.2 |
| Dimensions (W × H × D) | mm | 400 × 727 × 324 |
Product materials
Videos
Customer support
ATTACK service partners can help design, install and maintain the heating system. Ask an expert to assess whether the boiler and chimney are suitable.
Service supportOutput selection should be handled by an expert
Send us some details about your home and heating system. We will connect you with an expert partner who can check the design and installation.
