ATTACK HYDRO COMBI 250 INOX stainless steel combination tank

Domestic hot water and heating water in one tank.

The tank combines a 200-litre domestic hot-water cylinder with a 50-litre heating-water buffer section. A large-area stainless steel heat exchanger and a 3 kW electric element support hot-water preparation.

Variants
  • HYDRO COMBI 250 INOX

Category: Domestic hot water tanks

200 + 50 lDHW and buffer capacity
Stainless steelMaterial
3 kWElectric heating element
Robot-weldedwith high precision

For heat pumps

Two water volumes in one tank

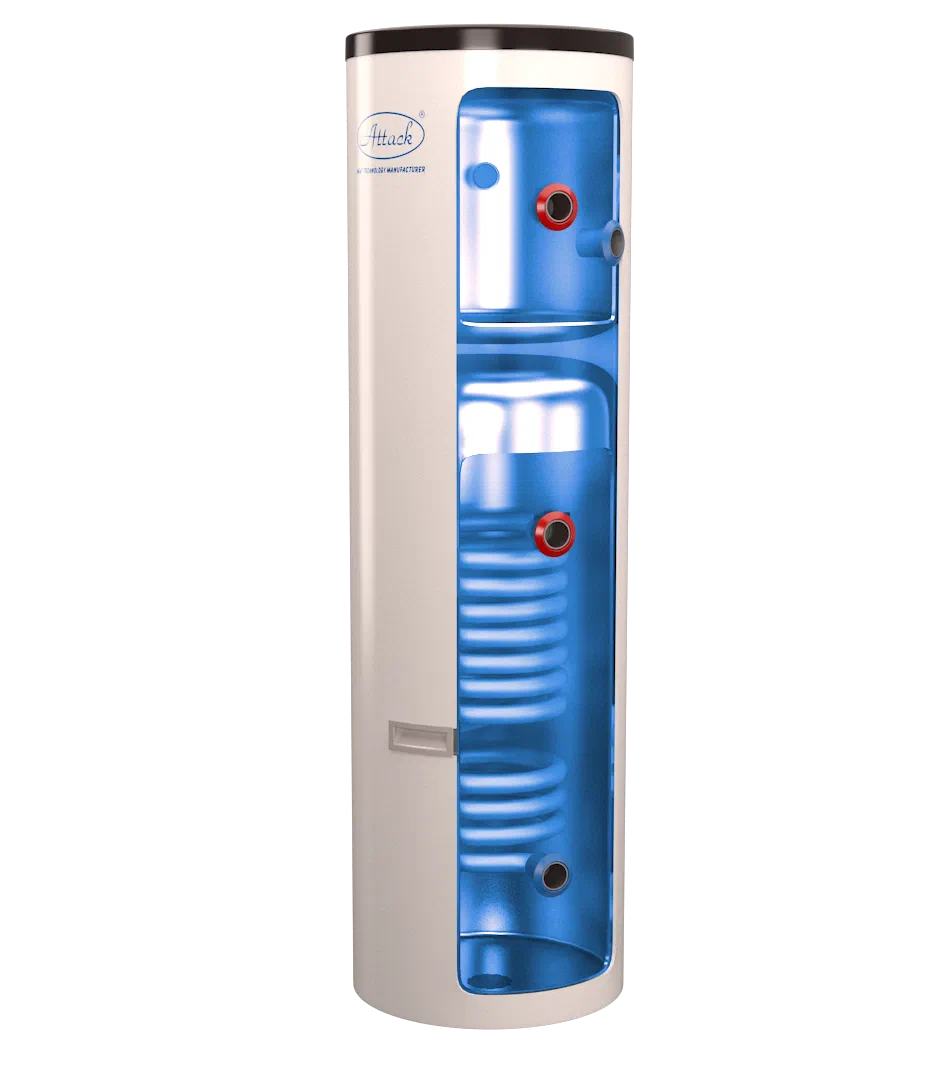

ATTACK HYDRO COMBI combines a 200-litre domestic hot-water tank with a 50-litre central-heating buffer section. The large-area heat exchanger and connections are designed for integration with a heat-pump system.

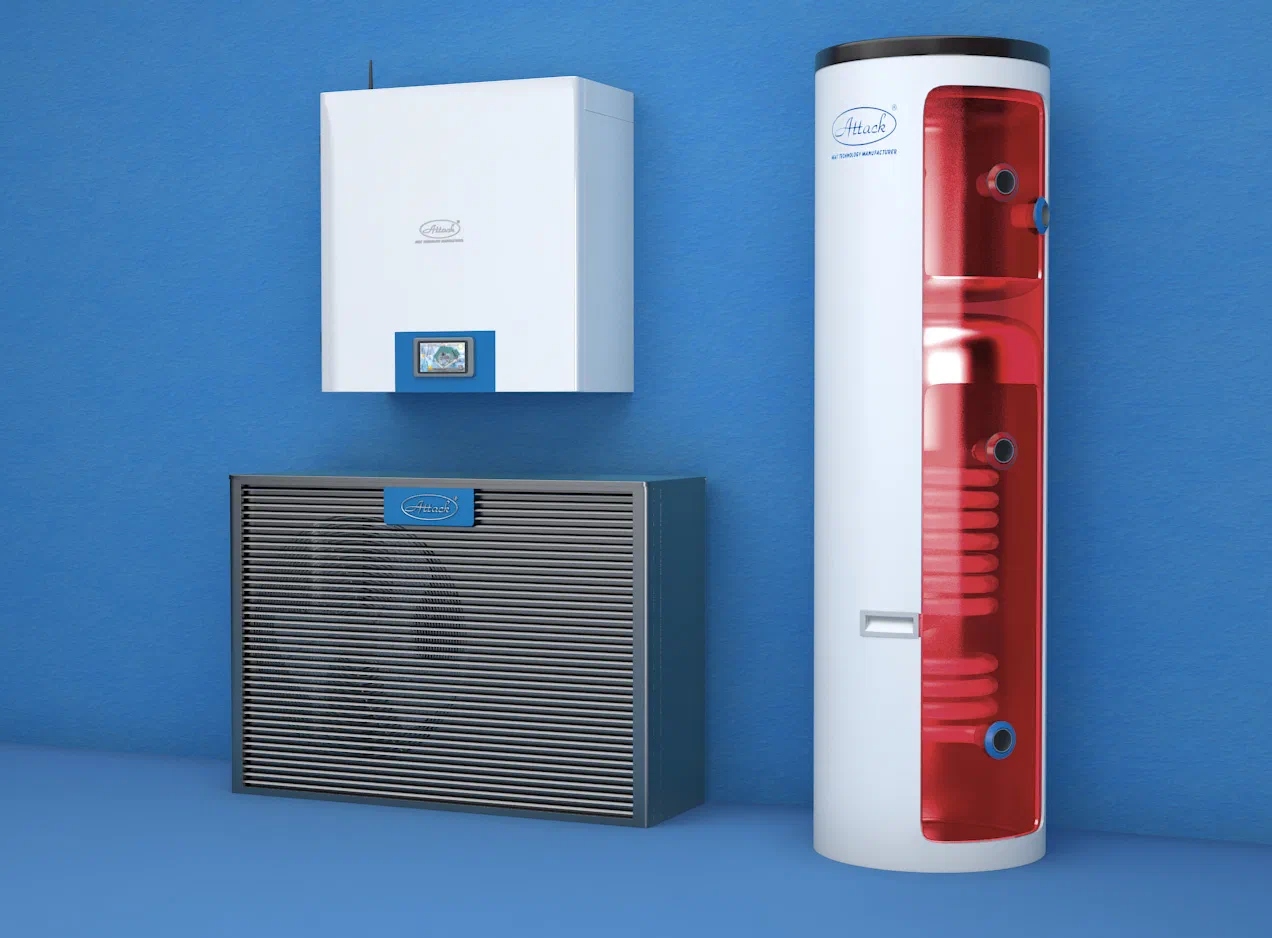

ATTACK HYDRO COMBI 250 INOX stainless steel tank

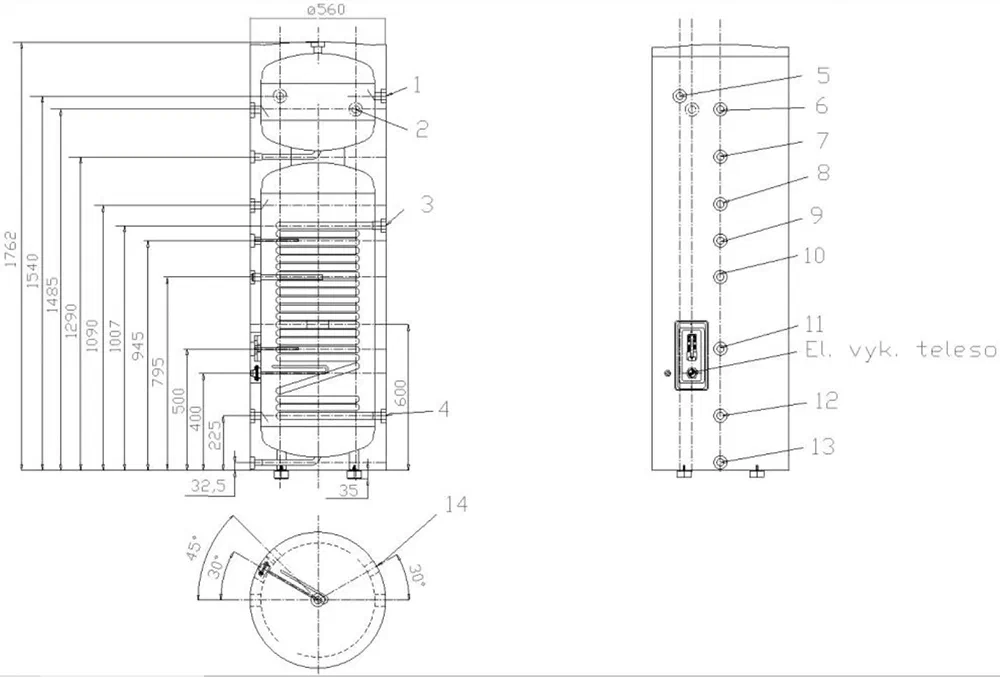

Detailed schematic information

HYDRO COMBI connections and service points

The manufacturer’s diagram marks the heating-water, circulation and domestic hot-water connections, sensors, anode and drain points.

HYDRO COMBI connections and service points
Technical diagram of the ATTACK HYDRO COMBI tank with marked connections

Komponent 1 / 14

Central-heating flow connection G 1½″

Position 1: heating-water flow connection.

Komponent 2 / 14

Circulation inlet G 1½″

Position 2: circulation branch inlet.

Komponent 3 / 14

Central-heating inlet G 1″

Position 3: heating-water inlet.

Komponent 4 / 14

Central-heating outlet G 1″

Position 4: heating-water outlet.

Komponent 5 / 14

Circulation outlet G 1½″

Position 5: circulation branch outlet.

Komponent 6 / 14

Central-heating return G 1½″

Position 6: heating-water return connection.

Komponent 7 / 14

Water drain G ¾″

Position 7: water drain.

Komponent 8 / 14

Hot-water outlet G 1½″

Position 8: domestic hot-water outlet.

Komponent 9 / 14

Temperature sensor G ½″

Position 9: temperature sensor connection.

Komponent 10 / 14

Anode G ¾″

Position 10: anode connection.

Komponent 11 / 14

Temperature sensor G ½″

Position 11: temperature sensor connection.

Komponent 12 / 14

Cold-water inlet G 1½″

Position 12: cold-water inlet.

Komponent 13 / 14

Water drain G ¾″

Position 13: water drain.

Komponent 14 / 14

Circulation outlet G 1″

Position 14: circulation branch outlet.

Detailed specifications

Technical data

Check the manufacturer's current documentation before designing the heating system.

ParameterUnitHYDRO COMBI 250 INOX
Overall height including feetmm1797
Width (outside diameter)mm560
Domestic hot-water tank capacityl200
Central-heating buffer capacityl50
Stainless steel heat-exchanger aream²2.6
Electric element outputkW3
Polyurethane insulation thicknessmm50

Product materials
