Year-round comfort at home
The ATTACK Inverter R32 heat pump extracts energy from the outdoor air and transfers it to a water-based heating system. Its monobloc configuration provides heating and cooling and prepares domestic hot water in an external tank. The range includes five models from 6 to 19 kW.

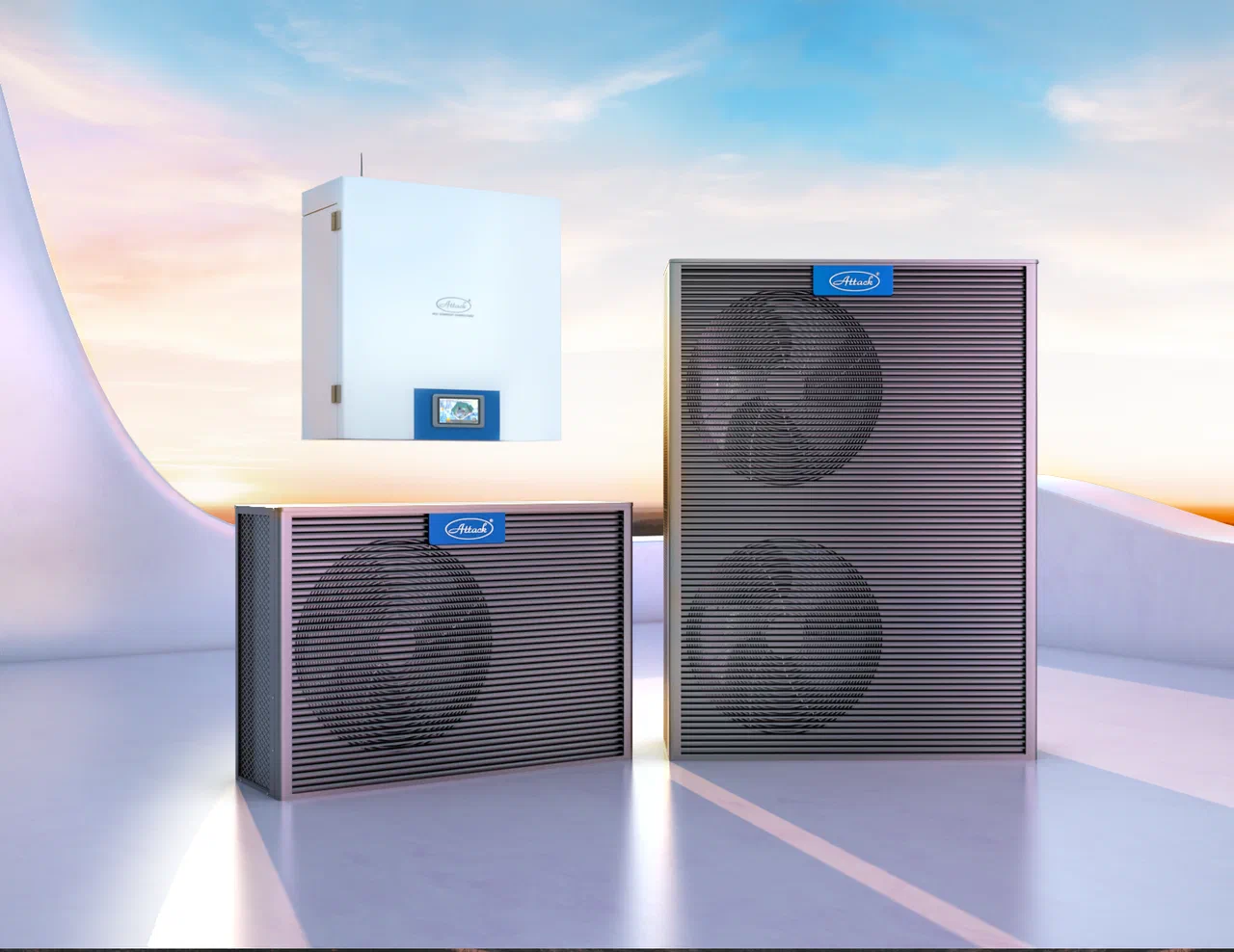

The 6 to 12 kW models have one fan; the 15 and 19 kW models have two.
Category: Heat pumps
Discover ATTACK heat pumps

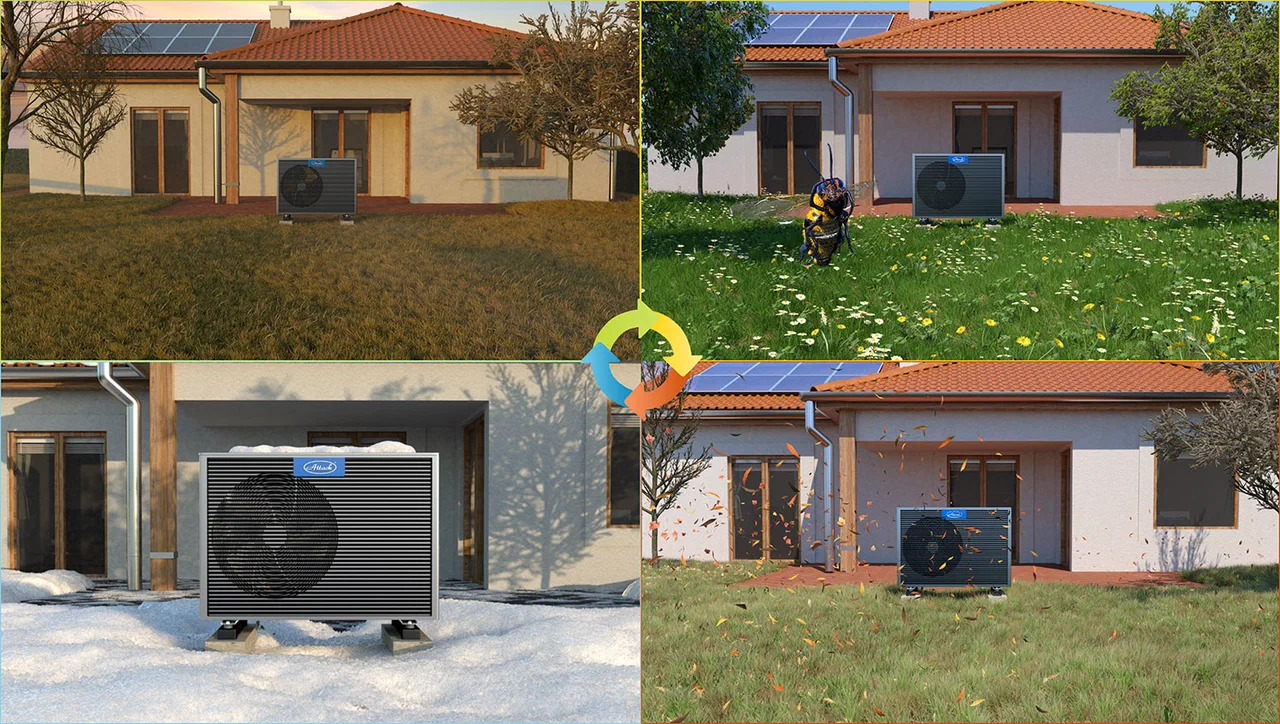

Year-round operation
An ideal solution for modern new homes with an A0 energy rating. Its A+++ seasonal heating efficiency can also help reduce costs in renovated homes. An air-to-water heat pump system is one of the most cost-effective heat pump options.
Installation

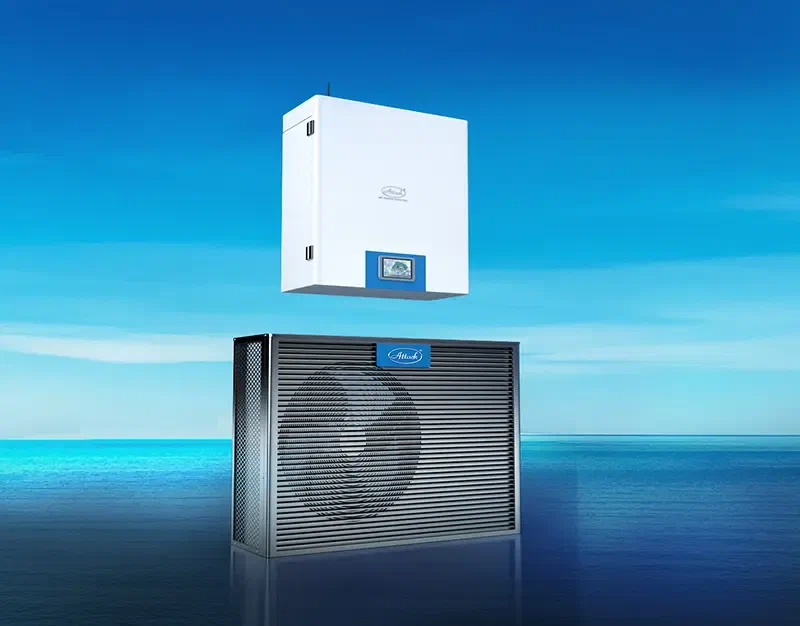

An ATTACK Inverter R32 can be installed by a heating engineer without refrigeration certification; only the heating circuit and electrical supply need to be connected. The monobloc outdoor unit contains all required components, while the compact wall-mounted indoor unit suits installations that retain an existing DHW tank or have limited space.
Controls
Find out how a monobloc air-to-water heat pump works and what its benefits are.
Household support
Take the opportunity to get modern equipment for your home with a grant of up to €1,500. Request a quote and we will help manage the full process, including the grant application.
Heat pump features
System features
Explore the main technical features and operating comfort of the ATTACK Inverter R32.
Inverter

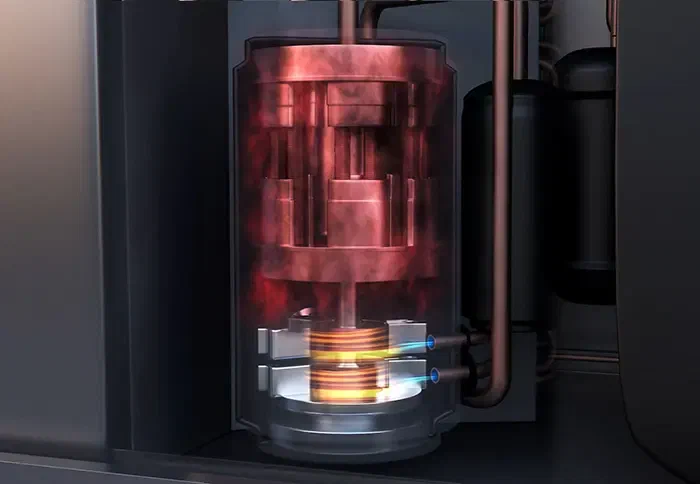

The inverter compressor continuously adjusts output and reduces frequent starts and stops.
Operating noise
All operating and moving parts are installed in the outdoor unit, away from the living area.
Output range
DHW hygiene
ATTACK Inverter R32
An air-to-water heat pump combines heating, cooling and domestic hot water preparation.

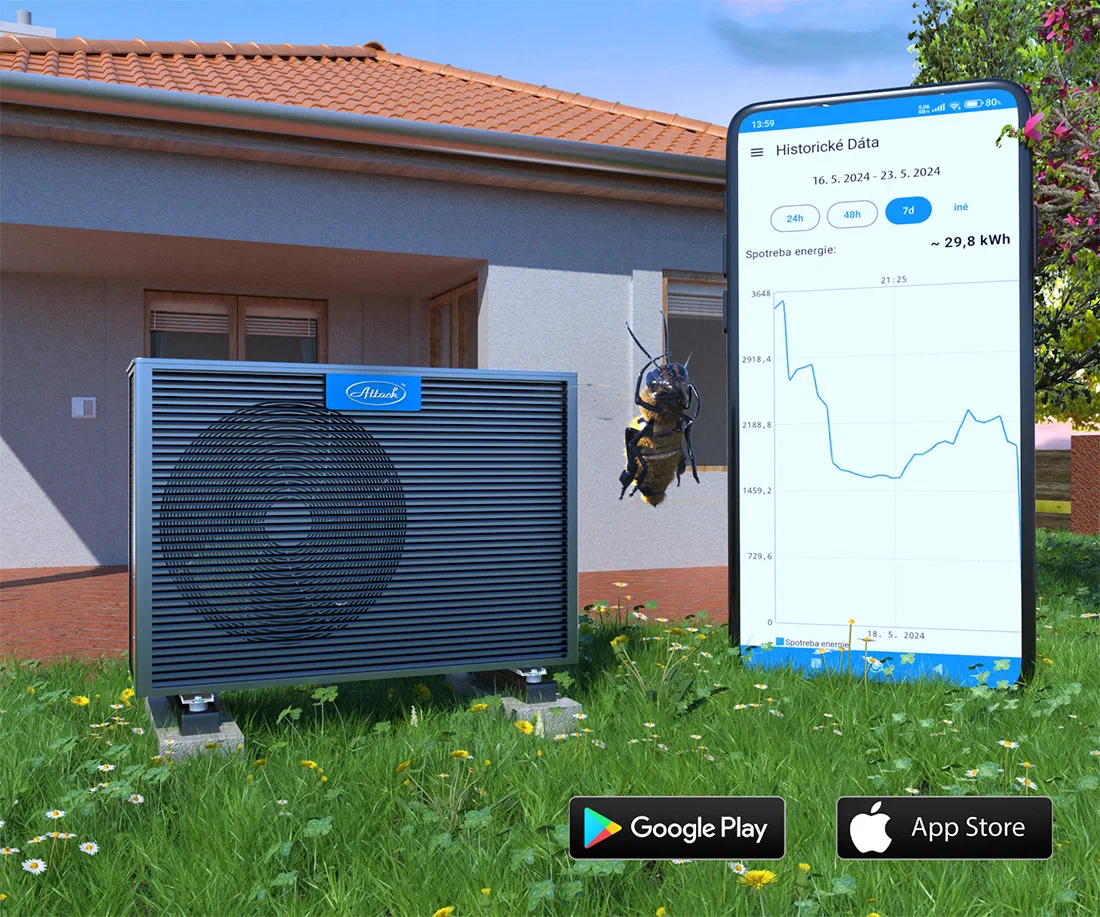

Control your heat pump from anywhere. An ATTACK Wi-Fi router and access to the ATTACK Heating mobile app are included free of charge. Get a clear view of the current status and full control of your heat pump, with detailed information about its energy consumption.

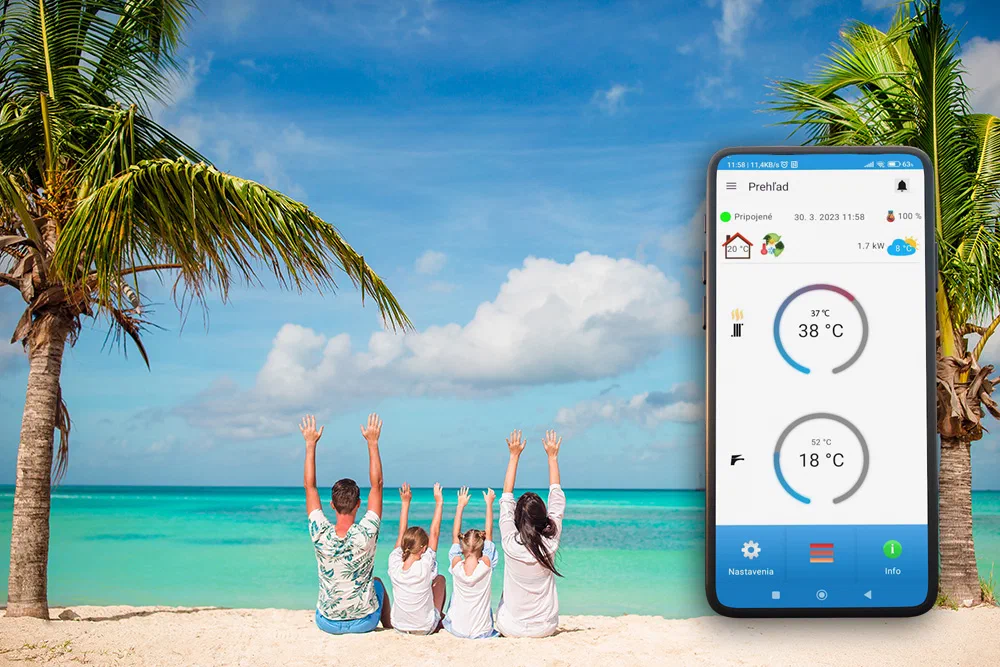

In holiday mode, the heat pump maintains the minimum required temperature to save energy and reduce heating costs. You can monitor the heat pump through the mobile app, and set the start and end times for the holiday period.

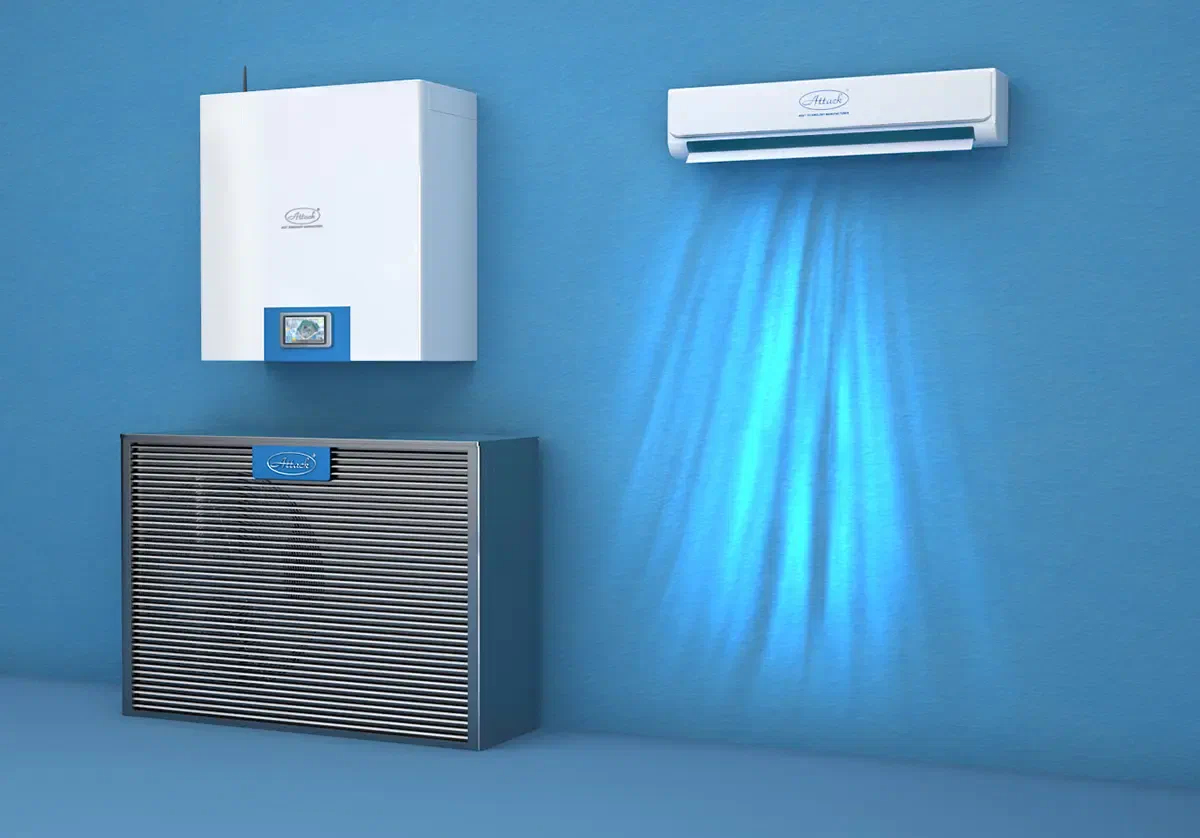

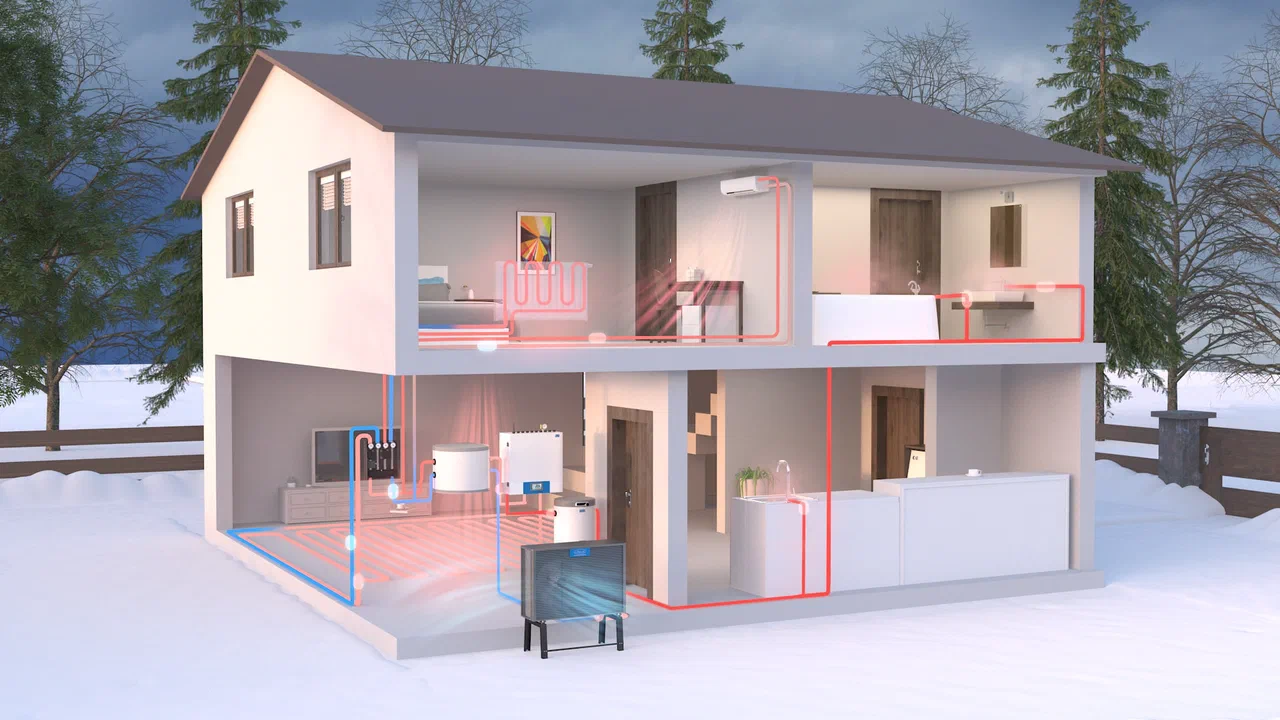

Enjoy a comfortable temperature throughout the year. As well as heating, the heat pump can provide full cooling when connected to fan coil units. Maintaining a comfortable indoor temperature supports everyday activities at home and a good night’s sleep.

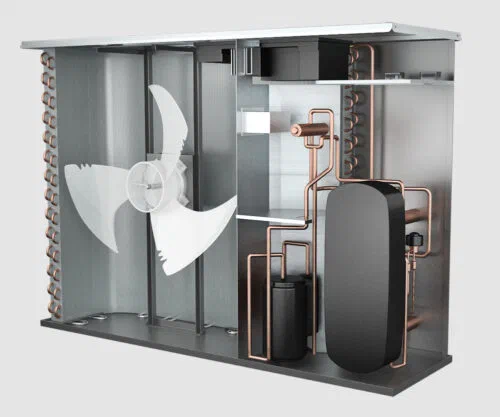

Interactive component map
Select a point on the diagram to learn about the role of each heat pump component.
Heat pump accessories
Choose a compact buffer tank, a stainless-steel hot water tank for heat pumps, or fan coil units for heating and cooling individual rooms.

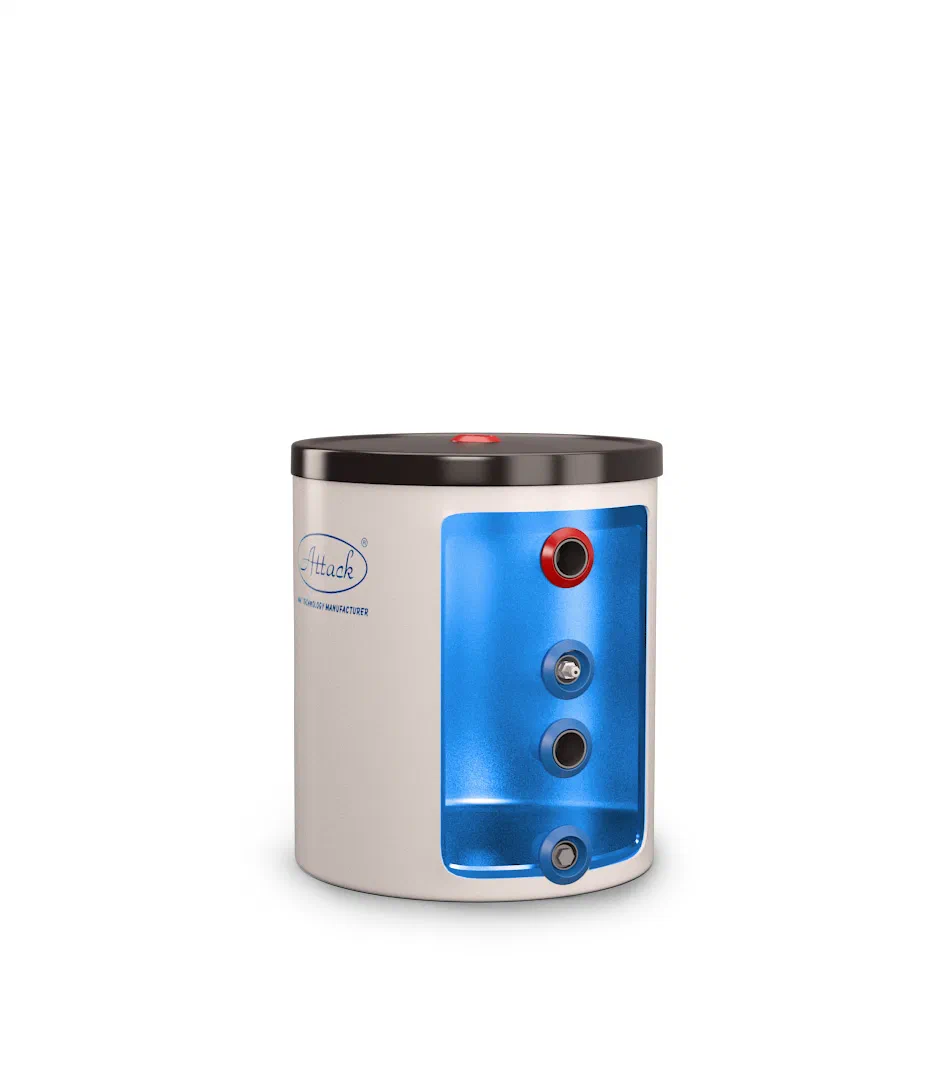

Compact buffer tank · 50 l
This compact stainless-steel tank helps maintain the required flow in the heating circuit and provides water for the heat pump defrost cycle.
More about AK INOX
DHW tank for a heat pump
Stainless-steel tanks with a large-area heat exchanger designed for heat pumps are available in 200 and 300 litre models.
More about the tank
Heating and cooling
Wall-mounted and cassette units distribute heat or cooling from the heat pump to individual rooms.
View unitsDetailed specifications
Measurement conditions: (1) heating, water 30/35 °C and outdoor air DB/WB 7/6 °C; (2) heating, water 40/45 °C and air 7/6 °C; (3) cooling, water 23/18 °C and air 35/24 °C; (4) cooling, water 12/7 °C and air 35/24 °C. The electrical input value for cooling condition (3) is omitted because the source contains a corrupted value for model 15.
| Parameter | Unit | ATTACK 6 | ATTACK 9 | ATTACK 12 | ATTACK 15 | ATTACK 19 |
|---|---|---|---|---|---|---|
| Power supply | V/Hz | 220–240/50 | 220–240/50 | 220–240/50 | 380–420/50 | 380–420/50 |
| Phase connection | phase | 1 | 1 | 1 | 3 | 3 |
| Maximum heating output (1) | kW | 6.5 | 9.2 | 11.6 | 15.35 | 18.5 |
| COP (1) | — | 4.61 | 4.38 | 4.3 | 4.78 | 4.47 |
| SCOP — average climate, low temperature | W/W | 4.74 | 4.71 | 4.71 | 4.99 | 4.84 |
| Minimum/maximum heating output (1) | kW | 3.5 / 6.5 | 4.3/9.2 | 5.5 / 11.6 | 6/15.35 | 9.2/18.5 |
| Minimum/maximum electrical input (1) | W | 758 / 1410 | 927/2097 | 1107 / 2683 | 1222/3209 | 1834/4142 |
| Minimum/maximum COP (1) | — | 4.5 / 4.7 | 4.38/4.71 | 4.3 / 4.9 | 4.78/5.06 | 4.47/5.01 |
| Maximum heating output (2) | kW | 6 | 8.6 | 11.2 | 14.26 | 18.2 |
| COP (2) | — | 3.46 | 3.37 | 3.45 | 3.64 | 3.6 |
| Minimum/maximum heating output (2) | kW | 3.15 / 6 | 3.9/8.6 | 4.9 / 11.2 | 5.6/14.26 | 8.5/18.2 |
| Minimum/maximum electrical input (2) | W | 943 / 1732 | 1162/2550 | 1401 / 3263 | 1551/3913 | 2248/4998 |
| Minimum/maximum COP (2) | — | 3.34 / 3.56 | 3.37 / 3.58 | 3.3 / 3.5 | 3.64 / 3.82 | 3.6 / 3.82 |
| Maximum cooling output (3) | kW | 7.45 | 9.5 | 9.8 | 18.57 | 22.5 |
| EER (3) | — | 4.05 | 4.23 | 3.9 | 3.78 | 3.58 |
| Minimum/maximum cooling output (3) | kW | 6.22/7.45 | 6.7/9.5 | 7.2/9.8 | 7.23/18.57 | 8.5/22.5 |
| Minimum/maximum EER (3) | — | 4.05/4.45 | 4.0/4.6 | 4.0/3.8 | 3.78/5.42 | 3.58/5.12 |
| Maximum cooling output (4) | kW | 4.5 | 7.2 | 6.5 | 13 | 16 |
| EER (4) | — | 2.7 | 2.8 | 2.7 | 2.96 | 2.85 |
| Minimum/maximum cooling output (4) | kW | 3.5/4.5 | 4.9/7.2 | 4.9 / 6.5 | 4.46/13 | 5.5/16 |
| Minimum/maximum electrical input (4) | W | 1330/1680 | 1451/2366 | 1358 / 2444 | 2592/4390 | 2970/5510 |
| Minimum/maximum EER (4) | — | 2.5/2.74 | 2.8/3.1 | 2.6 / 3.5 | 2.96/3.29 | 2.85/3.2 |
| Outdoor operating temperature range | °C | −25 to 43 | −25 to 43 | −25 to 43 | −25 to 43 | −25 to 43 |
| Minimum water temperature (heating/cooling) | °C | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 |
| Control electronics fuses | — | Indoor unit: 65TS/T15AL/250V; outdoor unit: 65TS/T25AL/250V | Indoor unit: 65TS/T15AL/250V; outdoor unit: 65TS/T25AL/250V | Indoor unit: 65TS/T15AL/250V; outdoor unit: 65TS/T25AL/250V | Indoor unit: 65TS/T15AL/250V; outdoor unit: 51NM/10A/250V | Indoor unit: 65TS/T15AL/250V; outdoor unit: 51NM/10A/250V |
| Minimum floor area for installation and operation | m2 | 0.8 | 1.9 | 3.1 | 6.2 | 6.4 |
| Maximum operating pressure — high-pressure circuit | MPa | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Maximum operating pressure — low-pressure circuit | MPa | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Compressor | type / number | Twin rotary — 1 | Twin rotary — 1 | Twin rotary — 1 | Twin rotary — 1 | Twin rotary — 1 |
| Refrigerant — type/charge | type / kg | R32 / 0.9 kg | R32 / 1.4 kg | R32 / 1.8 kg | R32 / 2.55 kg | R32 / 2.6 kg |
| Number of fans | pcs | 1 | 1 | 1 | 2 | 2 |
| Fan airflow | m3/h | 2500 | 3150 | 3150 | 6200 | 7000 |
| Fan power input | W | 34 | 45 | 45 | 90 | 120 |
| Indoor/outdoor unit sound level | dB(A) | 44 / 52 | 44 / 53 | 44 / 52 | 44 / 55 | 44 / 59 |
| Water-side heat exchanger type | — | Plate heat exchanger | Plate heat exchanger | Plate heat exchanger | Plate heat exchanger | Plate heat exchanger |
| Water-side heat exchanger pressure drop | kPa | 26 | 26 | 26 | 26 | 26 |
| Heat exchanger connection size | ″ | G1" | G1" | G1" | G1-1/4" | G1-1/4" |
| Minimum/nominal/maximum water flow | l/s | 0.21/0.29/0.35 | 0.26/0.43/0.52 | 0.34/0.57/0.68 | 0.43/0.71/0.85 | 0.55/0.92/1.1 |
| Indoor unit dimensions (W × H × D) | mm | 570 × 550 × 255 | 570 × 550 × 255 | 570 × 550 × 255 | 570 × 550 × 255 | 570 × 550 × 255 |
| Outdoor unit dimensions (W × H × D) | mm | 1 010 × 370 × 700 | 1 165 × 370 × 845 | 1 165 × 370 × 845 | 1 085 × 390 × 1 450 | 1 085 × 390 × 1 450 |
| Indoor unit weight | kg | 25 | 25 | 25 | 25 | 25 |
| Outdoor unit weight | kg | 65 | 78 | 85 | 120 | 140 |
Product materials
Videos
ATTACK service network
ATTACK service partners provide prompt customer assistance throughout the year.
Service supportOutput selection should be handled by an expert
Send us some details about your home and heating system. We will connect you with an expert partner who can check the design and installation.
