ATTACK PELLET 30 AUTOMATIC Plus pellet boiler

30 years of development and manufacturing

ATTACK PELLET 30 AUTOMATIC Plus

Automatic combustion and cleaning.

Class 5 pellet boiler with a 30 kW nominal output and an adjustable range of 8–30 kW. The SMART controller, with its 4.5-inch display, manages ignition, combustion, domestic hot water and heating circuits.

Output

8–30 kW

Controls

SMART touchscreen 4.5″

Emission class

Request a free quote

Category: Pellet boilers

8–30 kWadjustable output range

90,6 %efficiency in the technical table

4,5″SMART touchscreen

Automaticburner operation

Explore the ATTACK PELLET 30 AUTOMATIC Plus boiler

Key considerations when planning the boiler

Learn about its output, automatic operation and connection requirements.

Family homes in a snowy winter landscape

For the home

Suitable for many types of home

This high-output, efficient solid-fuel boiler can suit many types of home. Eligible households in Slovakia may also receive support through the Green for Households programme.

More information

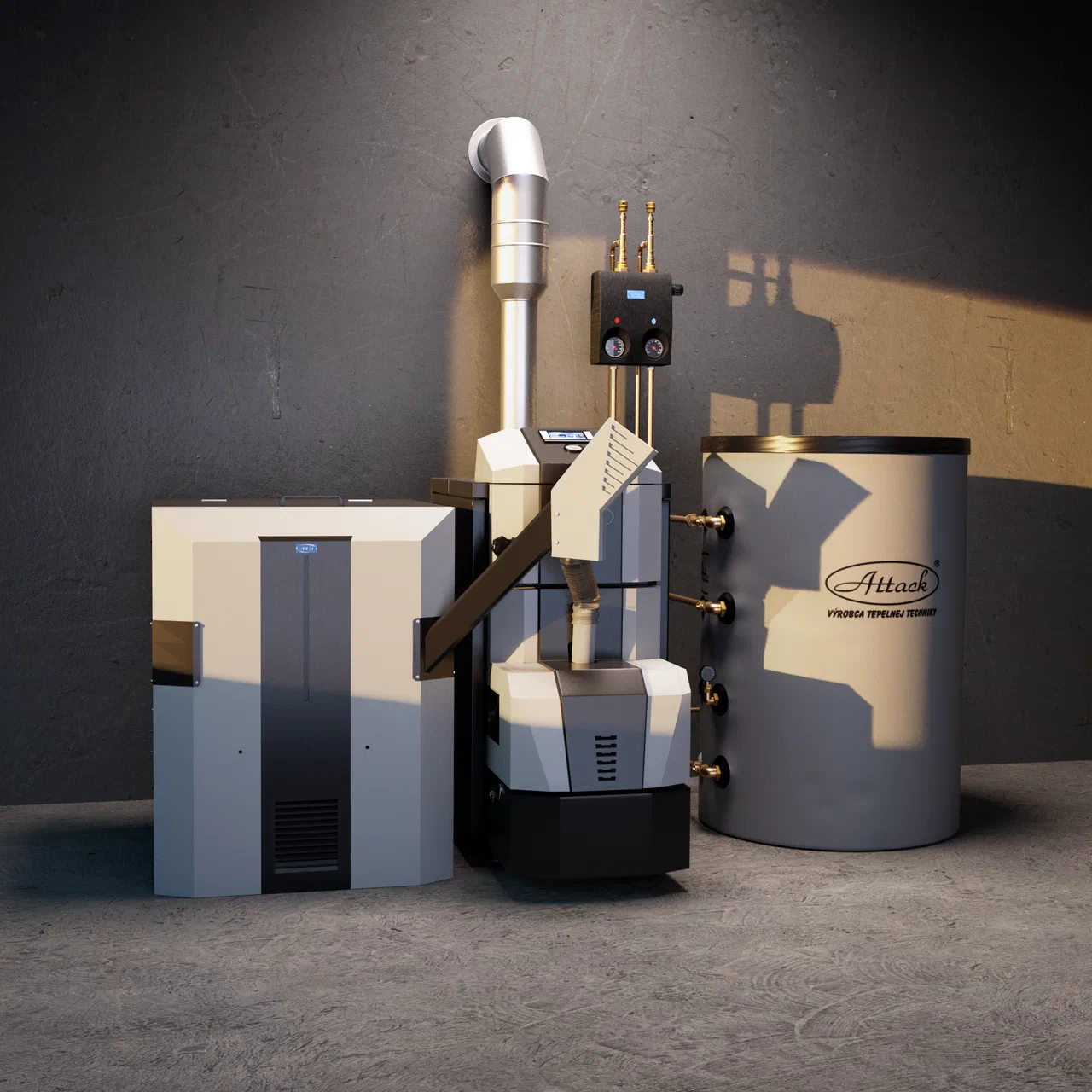

ATTACK PELLET 30 AUTOMATIC Plus boiler with a buffer tank

Installation

Boiler connection

Correctly connecting the boiler to the chimney is essential. Consider the home, boiler output, chimney and complete heating system when planning the installation.

More information

Practical advice for ATTACK wood boilers

Helpful advice

Practical boiler advice

Learn how to light the boiler quickly and efficiently, why tar forms and how to clean it properly.

How to light the boiler How to clean the boiler Why tar forms

ATTACK biomass boilers eligible for the grant programme

Household support

Green for Households grant programme

Eligible households can apply for a grant of up to €1,500 towards a new, modern heating appliance. Request a quote and we can help with the process, including the grant application.

More information

Fully automatic operation

From pellet feeding to ash removal

An auger feeder moves fuel into the combustion chamber. The boiler lights and controls combustion automatically, continuously cleans the heat exchanger and burner, and collects ash in a separate box.

Combustion chamber of the ATTACK PELLET 30 boiler

ATTACK PELLET 30 AUTOMATIC Plus technical features

A pellet boiler offers convenient, automated heating.

Its level of convenience is comparable to a gas boiler or heat pump.

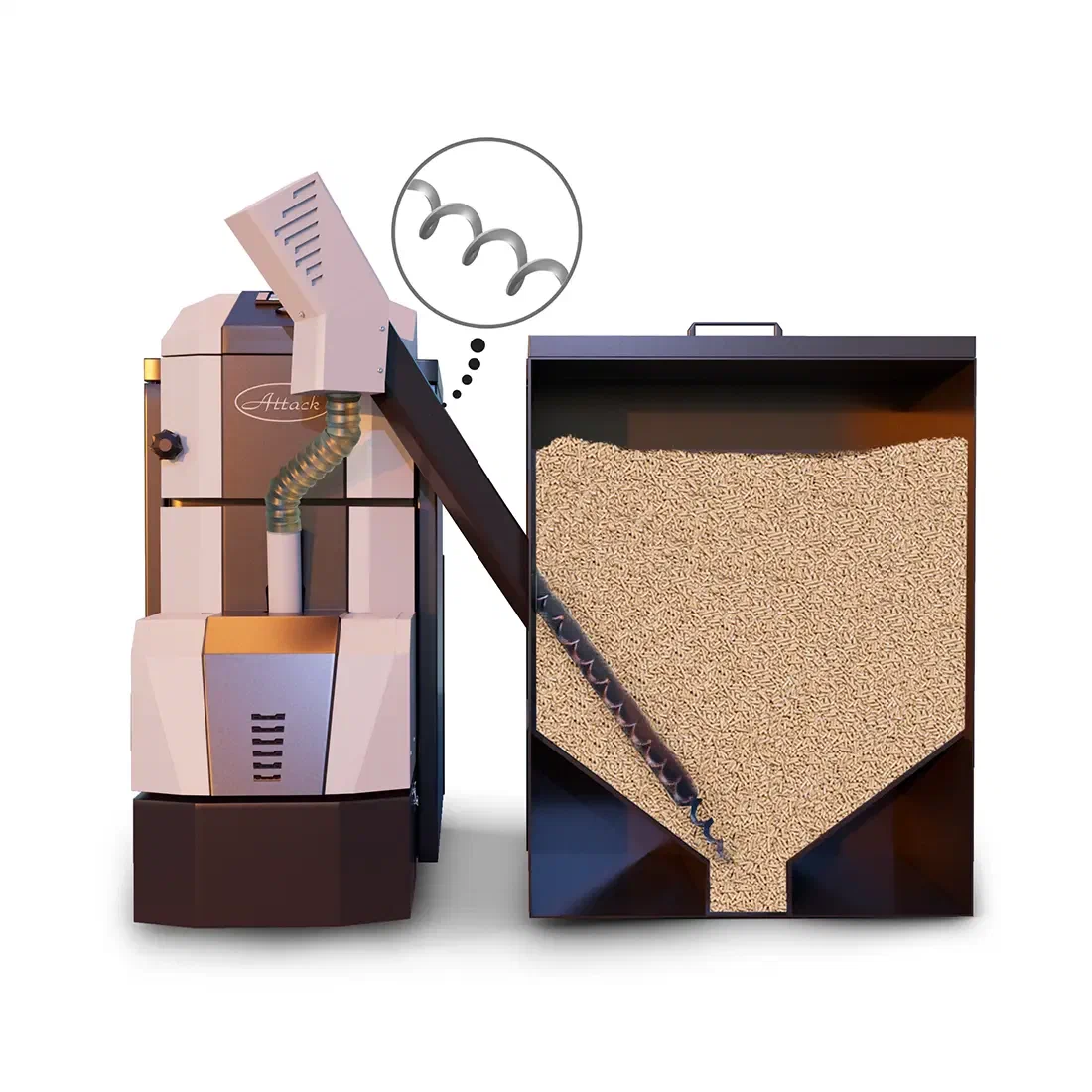

Fuel feed

Hopper and auger feeder

The boiler manages fuel feed, output adjustment and air supply. Pellets are delivered directly into the combustion chamber by an auger feeder (1.5–2.5 m), where they burn at 91% efficiency.

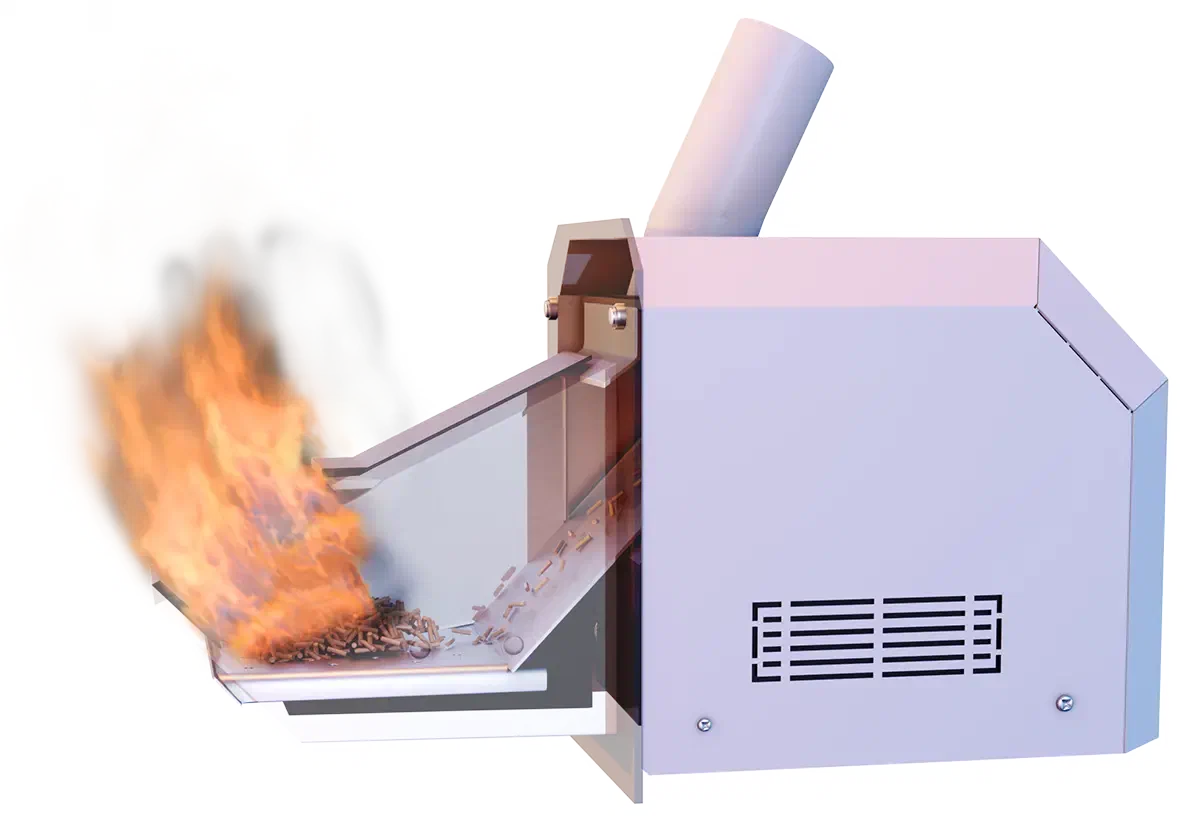

Pellet burner

Automatic combustion

ATTACK Pellet Burner Automatic provides fully automatic operation, including pellet feeding and ignition. Its key components are made from durable heat-resistant stainless steel. Safety features include burn-back protection and up to four safeguards against overheating.

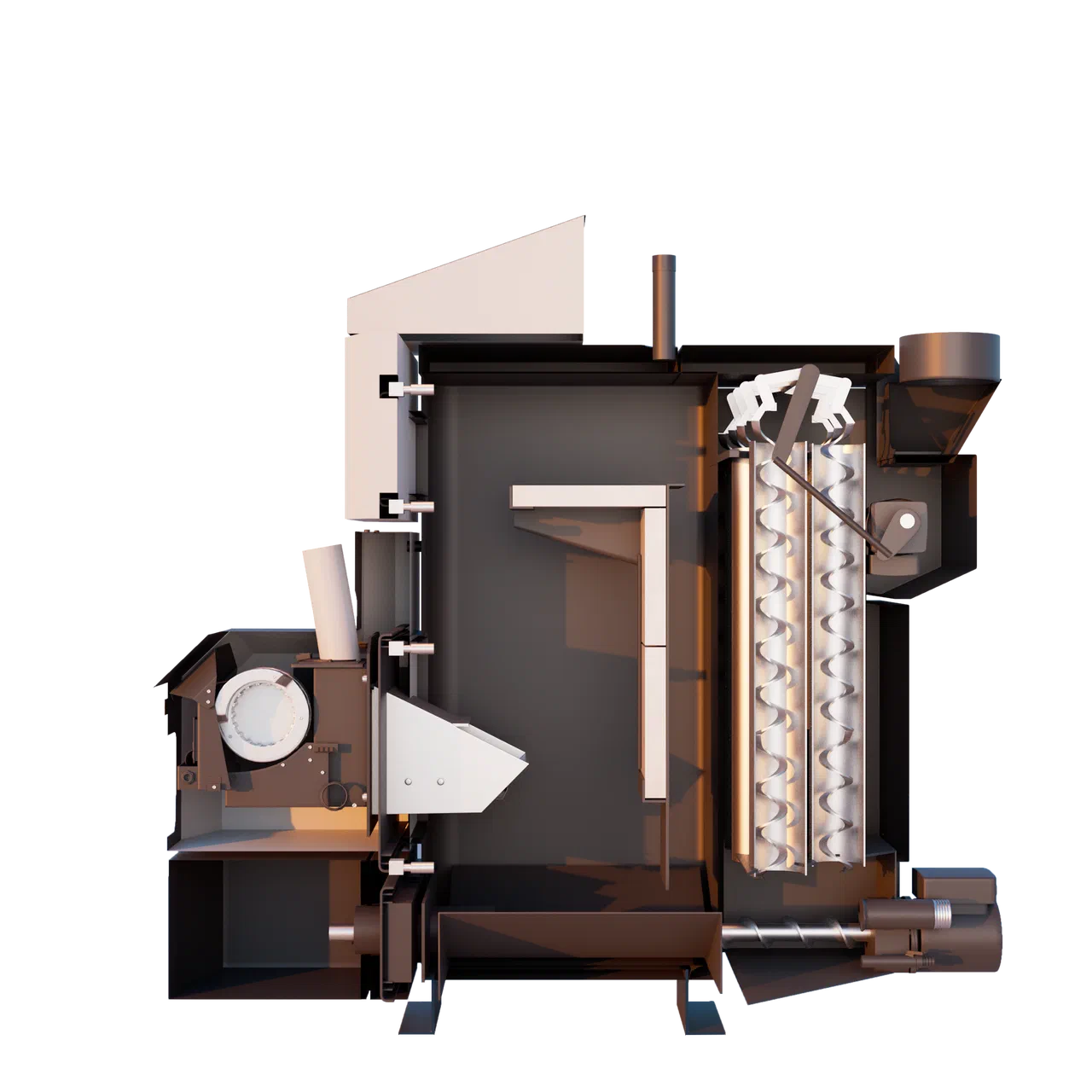

Boiler cleaning

Automatic cleaning

The turbulators help keep the tubular heat exchanger clean. The pellet burner also cleans itself after each burn or at a set interval. Ash is automatically moved to a removable container, which can be emptied so the boiler can continue operating.

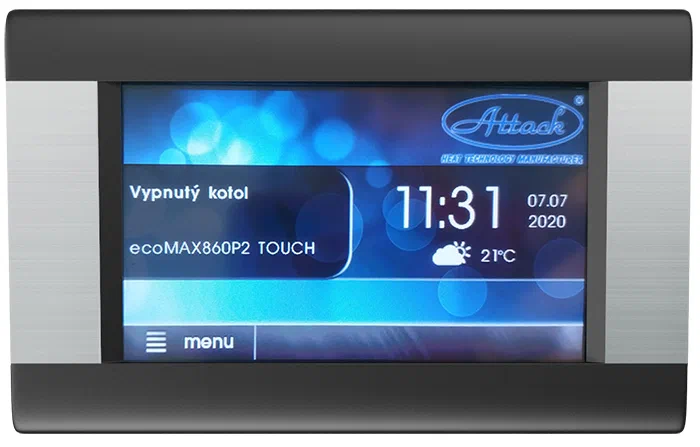

SMART touchscreen control panel on the ATTACK PELLET 30 boiler

Controls

SMART controls

Summer/winter mode

Cleaning timer
Operating information
Temperature setting
Whole-home control options: two mixed circuits (radiators and underfloor heating), domestic hot water tank heating and weather-compensated control
Mixer settings
A wide range of additional settings
Optional internet module and app for control over Wi-Fi or LAN

ATTACK PELLET 30 AUTOMATIC Plus boiler options

A practical solution for modernising the boiler room

Technical features presented as practical benefits for system design, installation and everyday use.

Buffer tank

For higher performance, we recommend adding a buffer tank and an ATTACK Oventrop mixing unit.

Pellet hopper

The pellet boiler comes with a 500 l hopper. An external fabric big bag can also be used. The large hopper holds enough pellets to keep the boiler running for an extended period.

Flue and connection on the ATTACK SLX COMBI PELLET boiler

Flue connection adjustment

Adapt the flue connection to the boiler-room layout. A correctly designed connection supports safe and effective flue-gas removal.

Interactive component map

Explore the components of the ATTACK PELLET 30 boiler

Select a marker on the cutaway to learn what each component does.

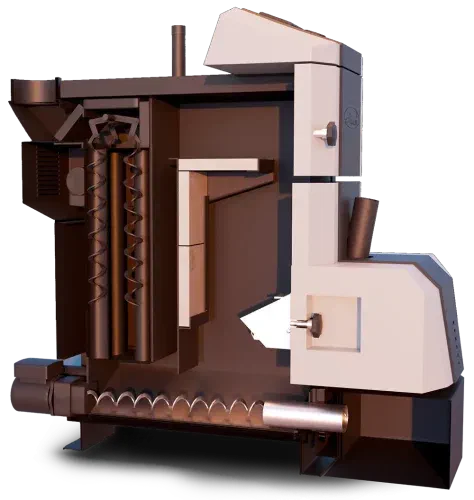

Cutaway view of the ATTACK PELLET 30 AUTOMATIC Plus with marked components

Komponent 01 / 13

Control electronics

The fully graphical 4.5-inch touchscreen controls the boiler. An internet module provides Wi-Fi or LAN connectivity.

Komponent 02 / 13

Service door

Used to clean the combustion chamber and heat exchanger.

Komponent 03 / 13

Pressure gauge

Shows the pressure in the heating system.

Komponent 04 / 13

Flow connection

Connection for the heating-water flow to the system.

Komponent 05 / 13

Return connection

Connection for heating water returning from the system.

Komponent 06 / 13

Ash auger

Moves ash from the combustion chamber into the pull-out container.

Komponent 07 / 13

Ash container

Collects ash produced while the boiler operates.

Komponent 08 / 13

Automatic burner

Feeds and ignites pellets on the grate and controls combustion.

Komponent 09 / 13

Refractory concrete inserts

Direct flue gas and support the burnout of emissions.

Komponent 10 / 13

Auger motor

Drives the auger feeder.

Komponent 11 / 13

Turbulator drive motor

Moves the turbulators that help clean the tubular heat exchanger.

Komponent 12 / 13

Turbulators

Improve heat transfer in the tubular heat exchanger and help keep it clean.

Komponent 13 / 13

Flue collar

Connects the flue outlet to the chimney.

Detailed specifications

Technical data

The technical table on the Slovak page lists boiler efficiency at 90.6%. Marketing copy on the same page says “up to 91%.”

Parameter	Unit	PELLET 30 AUTOMATIC Plus
Nominal output	kW	30
Output setting range	kW	8–30
Heat exchanger surface area	m²	1.9
Required chimney draught	Pa	15–20
Maximum heating-water operating pressure	kPa	250
Water-side pressure drop	Pa	152 pri ΔT = 10 K; 38 pri ΔT = 20 K
Boiler weight	kg	355
Flue outlet diameter	mm	150
Boiler height	mm	1 220
Boiler width	mm	575
Boiler depth	mm	1.250
Electrical protection rating	IP	IP 40
Maximum electrical input during ignition	W	600
Electrical input during operation	W	90
Boiler efficiency	%	90.6
Boiler class by CO emissions (EN 303-5)	—	5
Flue-gas temperature at rated output	°C	143
Specified fuel	—	Wood pellets, Ø 6 mm, maximum length 35 mm
Average fuel consumption	kg/h	2.4–6.9
Boiler water volume	l	62
Heating water temperature setting range	°C	60–90
Flue-gas mass flow at rated output	kg/s	0.015
Flue-gas mass flow at minimum output	kg/s	0.005
Supply voltage	V/Hz	~230/50
Recommended buffer tank volume	l	300

Product materials

Download documents

ATTACK PELLET 30 AUTOMATIC Plus operating manual PDF · English Boiler installation, operation and cleaning manual PDF · Slovak ATTACK PELLET 30 AUTOMATIC Plus energy label PDF · Slovak Hydraulic diagrams for connecting biomass boilers PDF · Slovak ATTACK PELLET 30 information sheets PDF · English PELL30AP LDV-B-02242-19 rev. 1 certificate PDF · Slovak PELL30AP B0147723 certificate PDF · English ATTACK PELLET 30 declaration of conformity PDF · Slovak ATTACK product warranty period Web · Slovak Instructions for proper installation, operation and cleaning of boilers PDF Hydraulic connection diagrams for biomass boilers PDF Technical data PDF

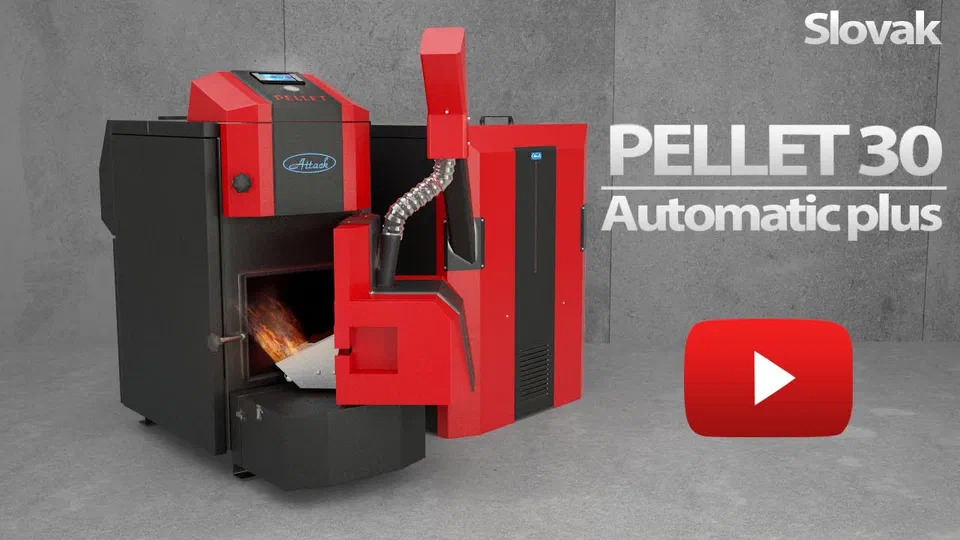

Videos

Take a closer look at the boiler

How to start the boilerYouTube

How to light and clean the boilerYouTube

Customer service

Year-round service assistance

The manufacturer says its service network covers Slovakia. When selecting a boiler or planning the chimney, consult a service technician, chimney professional or heating-system designer.

Service assistance
