- 40 NTR

30 years of development and manufacturing
ATTACK floor-standing indirect tanks
Models for different heat sources and hot-water capacities
ATTACK floor-standing tanks connect to an external heat source to prepare domestic hot water (DHW). The range includes OKC, OKH, NTR and SOL models with one or two heat exchangers and nominal capacities from 40 to 300 litres.

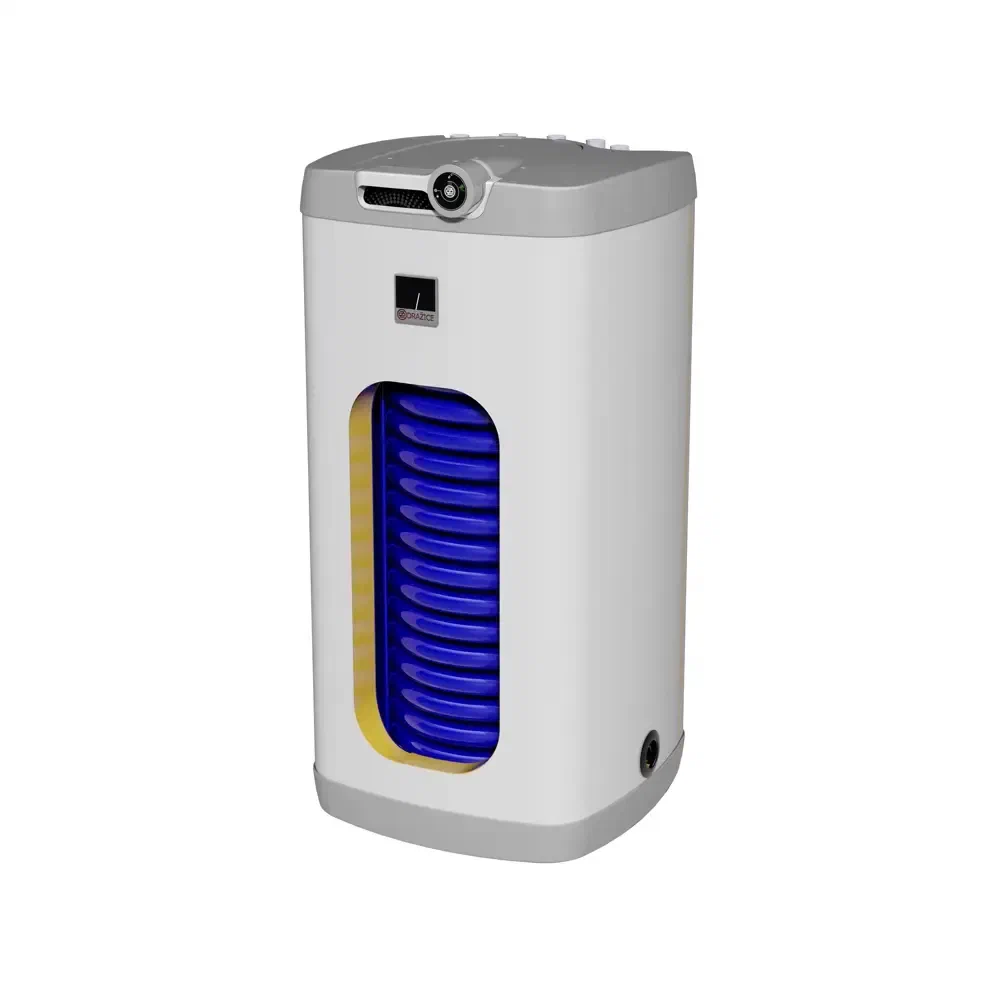

- 100 OKH NTR/HV
- 100 OKC/NTR/HV
- 125 OKC/NTR/Z
- 125 OKC/NTR/HV
- 125 OKH NTR/HV

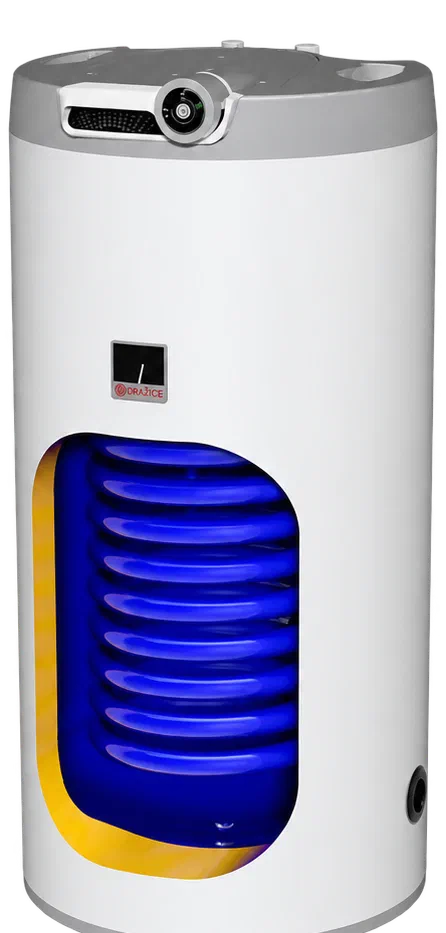

- 160 OKC/NTR

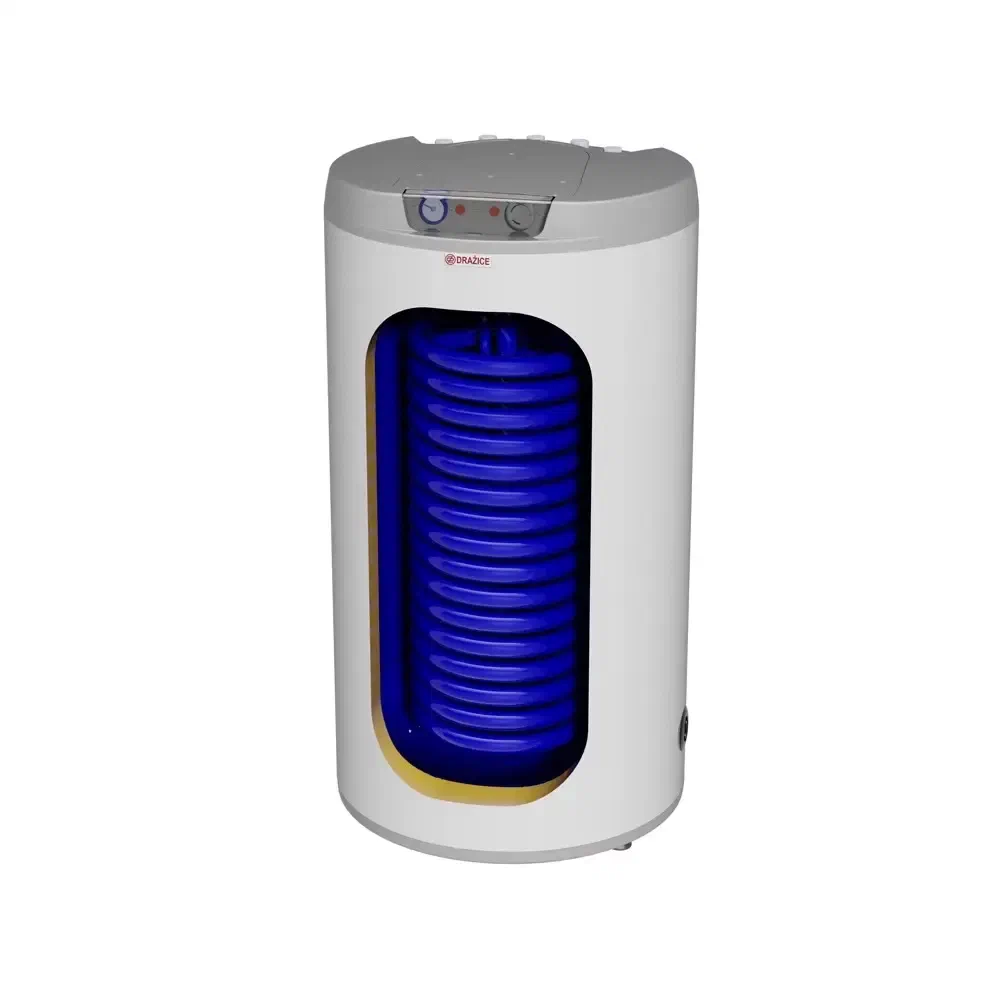

- 160 OKC/NTR/HV

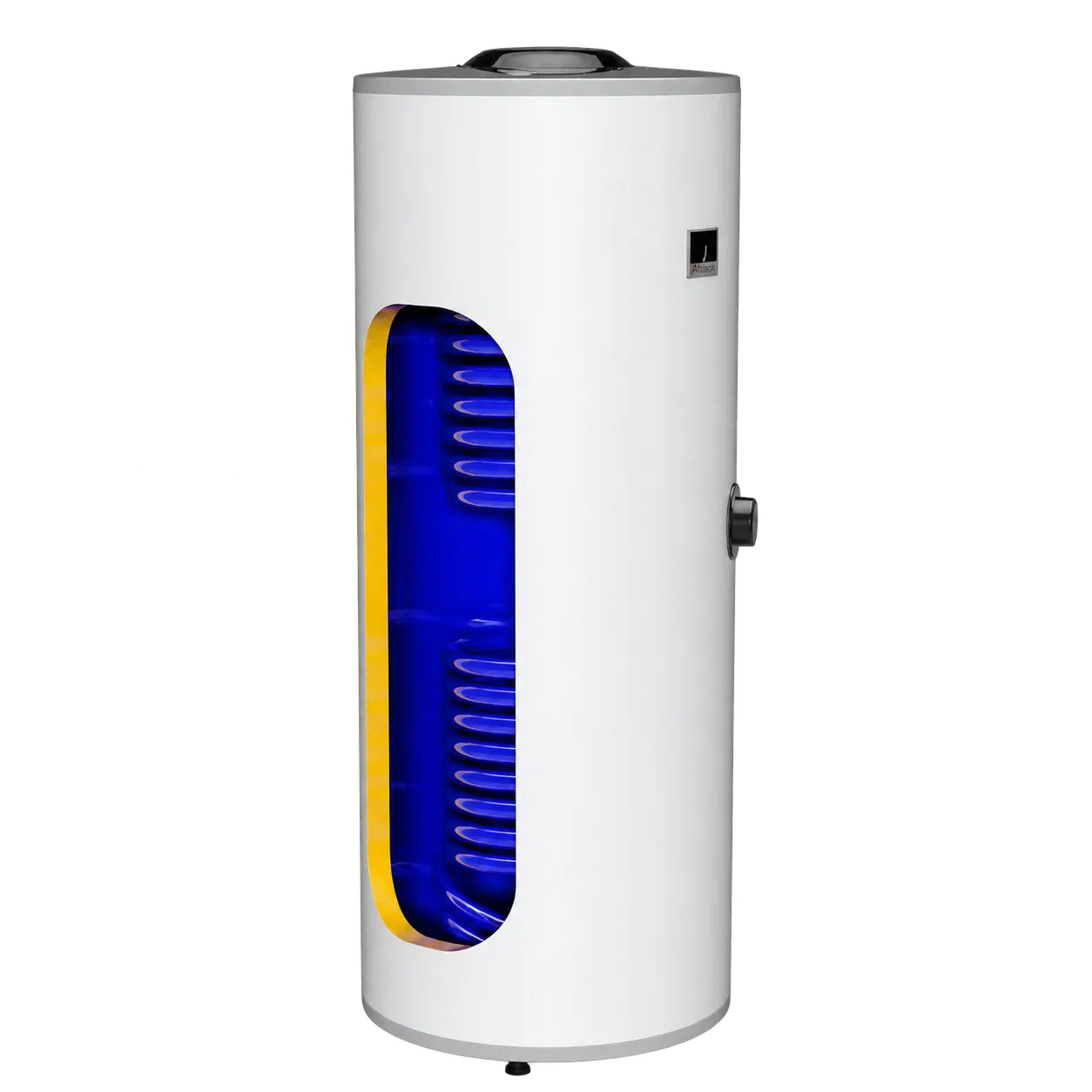

- 200 SOL/NTR
- 300 SOL/NTRR
- 40 NTR
- 100 OKH NTR/HV
- 125 OKH NTR/HV
- 100 OKC/NTR/HV
- 125 OKC/NTR/Z
- 125 OKC/NTR/HV
- 160 OKC/NTR
- 160 OKC/NTR/HV
- 200 SOL/NTR
- 300 SOL/NTRR
Category: Domestic hot-water tanks
Discover ATTACK floor-standing indirect hot-water tanks
Suitable for external heat sources
Floor-standing design
A DHW tank heated by an external source
ATTACK floor-standing tanks connect to different heat sources. Depending on the model, they use one or two heat exchangers and have different connection layouts.
ATTACK floor-standing tank models
Explore the tank models
Find out which heating appliances they are suitable for.
Detailed specifications
Technical data
Check the manufacturer's current documentation before designing the heating system.
| Parameter | Unit | 40 NTR | 100 OKH NTR/HV | 125 OKH NTR/HV | 100 OKC/NTR/HV | 125 OKC/NTR/Z | 125 OKC/NTR/HV | 160 OKC/NTR | 160 OKC/NTR/HV | 200 SOL/NTR | 300 SOL/NTRR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | l | 40 | 87 | 115 | 87 | 113 | 113 | 148 | 148 | 200 | 275 |
| Weight without water | kg | 45 | 55 | 67 | 53 | 55 | 67 | 73 | 77 | 104 | 111 |
| Heat-exchanger output | kW | 23.2 | 24 | 32 | 24 | 32 | 32 | 32 | 32 | 19 | 29 |
| Heat-up time via heat exchanger from 10 °C to 60 °C | min | 10 | 13 | 13 | 13 | 13 | 13 | 16 | 16 | 34 | 33 |
| Heat-exchanger surface area | m² | 0.6 | 1.08 | 1.45 | 1.08 | 1.08 | 1.08 | 1.45 | 1.45 | 0.8 | 1.2 |
Product materials
Download documents
Customer support
Help with selection and connection
A service partner can help you choose the tank type and number of heat exchangers, and connect it to your heat source.
Service supportNeed advice?
Choose a tank for your heat source and hot-water demand
An expert can help you choose the capacity and heat-exchanger type for your heating system and domestic hot water.
