ATTACK DPX 15 wood boiler
Compact dimensions. Easier installation.
ATTACK DPX 15 is a wood gasification boiler rated at 15 kW and designed to burn logs. Its compact design makes it easier to install in a smaller boiler room. The 82-litre loading chamber accepts logs up to 350 mm long.
Category: Wood boilers
91.3%efficiency in the technical table
Gravity circulationG2
350 mmmaximum log length
Class 5emission class
Explore ATTACK DPX 15
Explore a compact boiler designed for easier installation
See guidance on selecting the output, connecting and maintaining the ATTACK DPX 15, and choosing its options.
Installation
Boiler connection
Correctly connecting the boiler to the chimney is essential. The design should account for the home, boiler output, chimney and the entire heating system.
Practical advice
Practical boiler advice
Learn how to light the boiler quickly and efficiently, why tar forms and how to clean the boiler properly.
Household support
Green for Households grant programme
Eligible households can apply for a grant of up to €1,500 towards a new, modern heating appliance. Request a quote and we can help with the process, including the grant application.

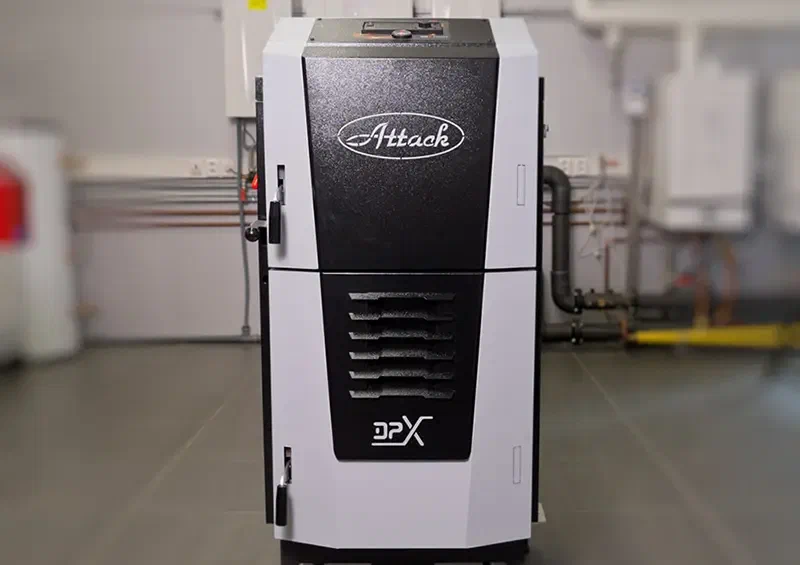

Compact dimensions of the ATTACK DPX 15 boiler
Easier installation in a smaller boiler room
Compact dimensions and improved access to the electrical connections make the boiler easier to position. When selecting the output, consider the chimney height and cross-section as well as the heating system. The manufacturer recommends discussing the design with a service technician, chimney professional or heating-system designer.
Features and operation
How ATTACK DPX 15 works
Explore the loading chamber, combustion, cleaning, damper and available controls.

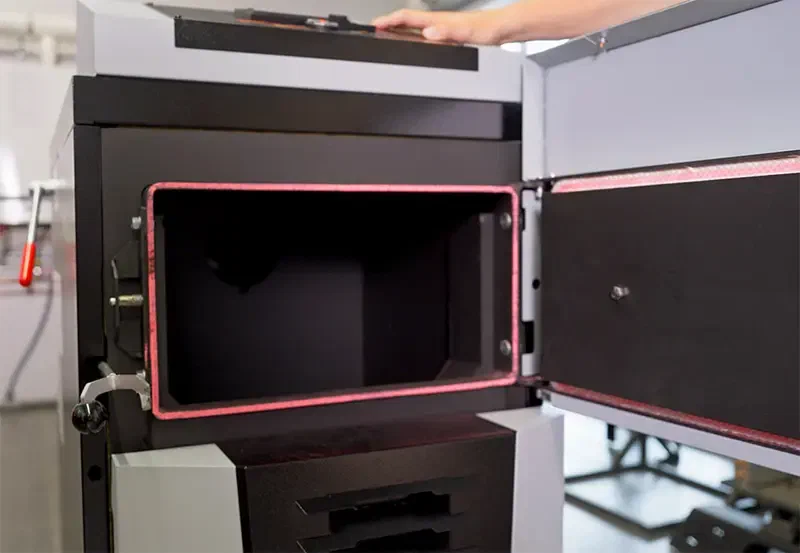

Loading chamber
82 litres for logs up to 350 mm
This compact boiler has an 82-litre loading chamber and accepts logs up to 350 mm long.
Combustion
Wood gasification technology
ATTACK boilers are designed with the environment in mind. Precisely controlled wood gasification is cleaner and more efficient than combustion in a conventional boiler. With efficiency of up to 91%, it uses less fuel and can reduce both heating costs and environmental impact.
Cleaning

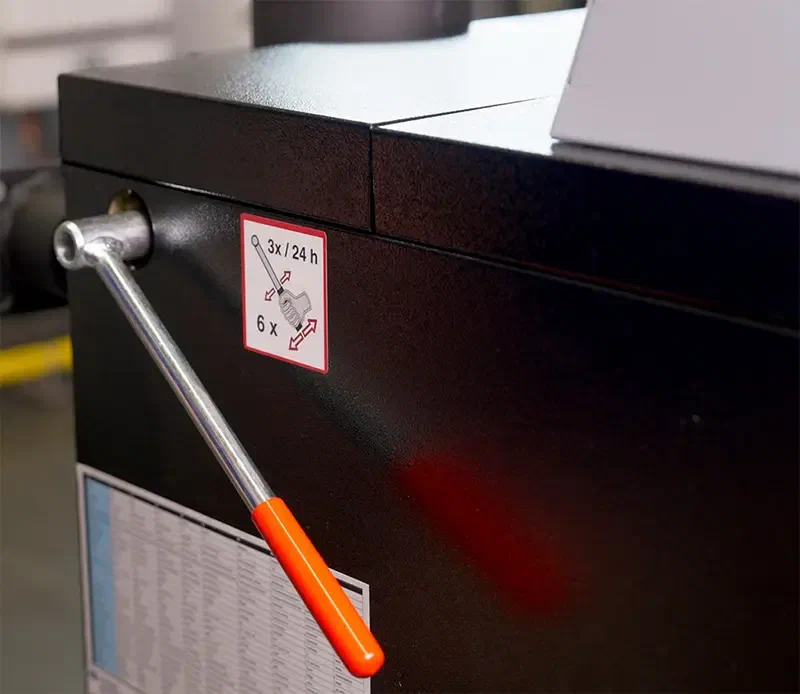

Mechanical heat exchanger cleaning lever
The heat exchanger is cleaned with a mechanical lever. The product page says it can be positioned to suit the boiler-room layout.
Flue-gas extraction
Automatic flue damper
The damper opens when the loading door is opened and directs flue gas straight to the chimney. It closes automatically when the door is shut.
Two control options
Controls

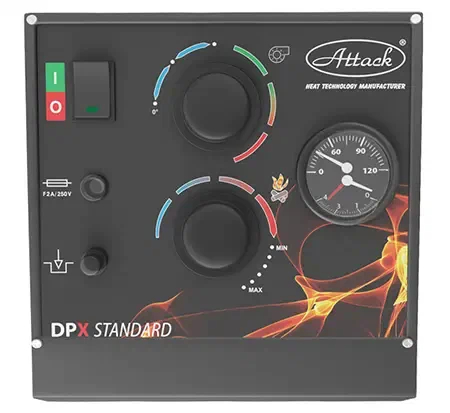

STANDARD controls
The basic control is intended mainly for simple heating systems with a buffer tank.
PROFI controls
The PROFI version adds more control options. Its manual describes PID boiler control and manual adjustment of user parameters.
ATTACK DPX 15 boiler options
Compact footprint, practical operation
ATTACK DPX 15 combines a 15 kW output and compact dimensions with features that simplify installation, lighting and maintenance.
01
Connection to Viadrus U26
ATTACK DPX 15 makes it easier to replace an older Viadrus U26 boiler. It has the same G 2″ hydraulic connection size and the same connection spacing, simplifying installation.
02

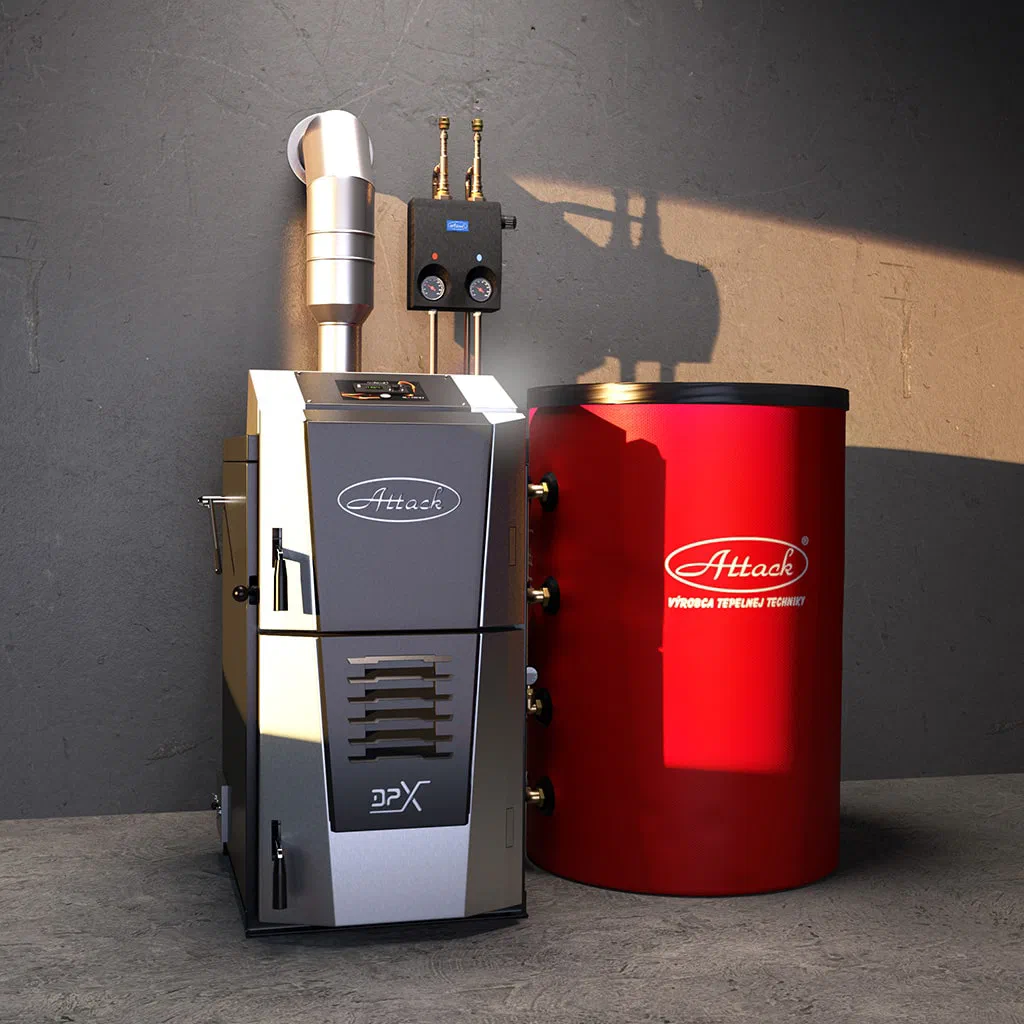

Buffer tank
For higher performance, we recommend adding a buffer tank and an ATTACK Oventrop mixing unit.
03

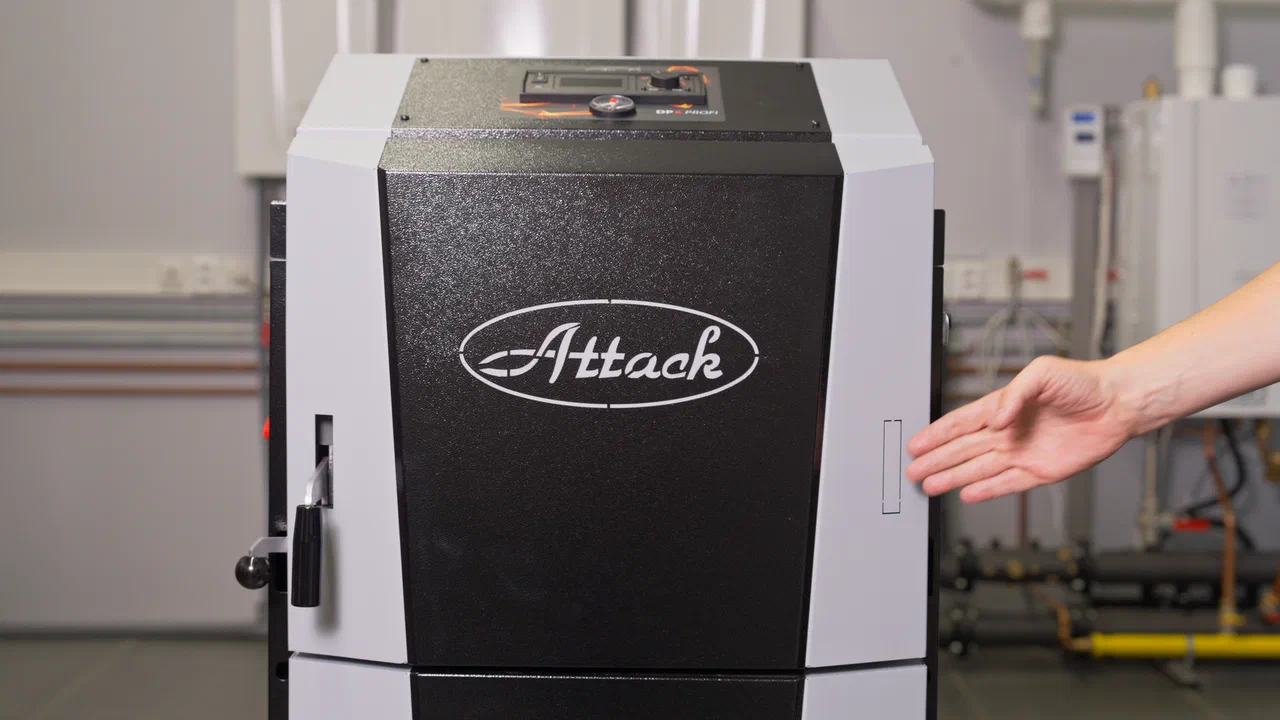

Reversible door opening
ATTACK DPX 15 offers flexibility in the boiler room. You can choose the door opening direction to suit the available space.
04

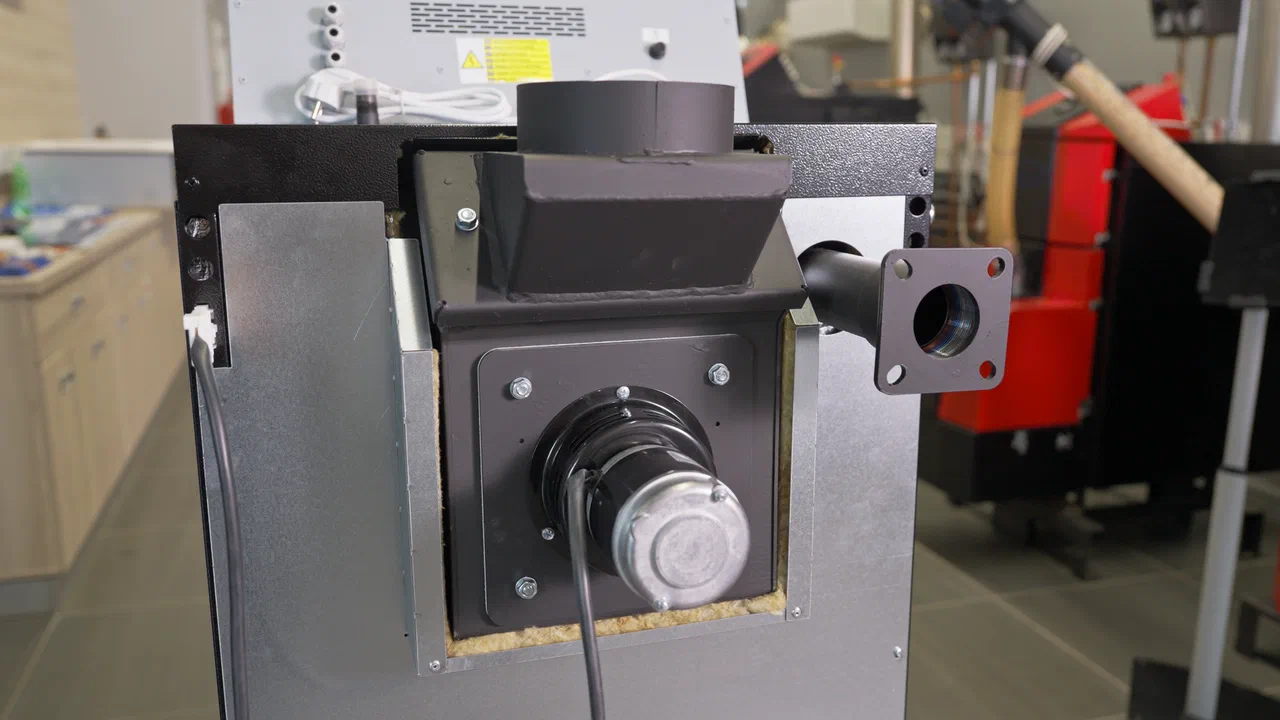

Flue connection adjustment
Adapt the flue connection to the boiler-room layout. A correctly designed connection supports safe and effective flue-gas removal.
Technical information about boiler components
Explore the key components of ATTACK DPX 15

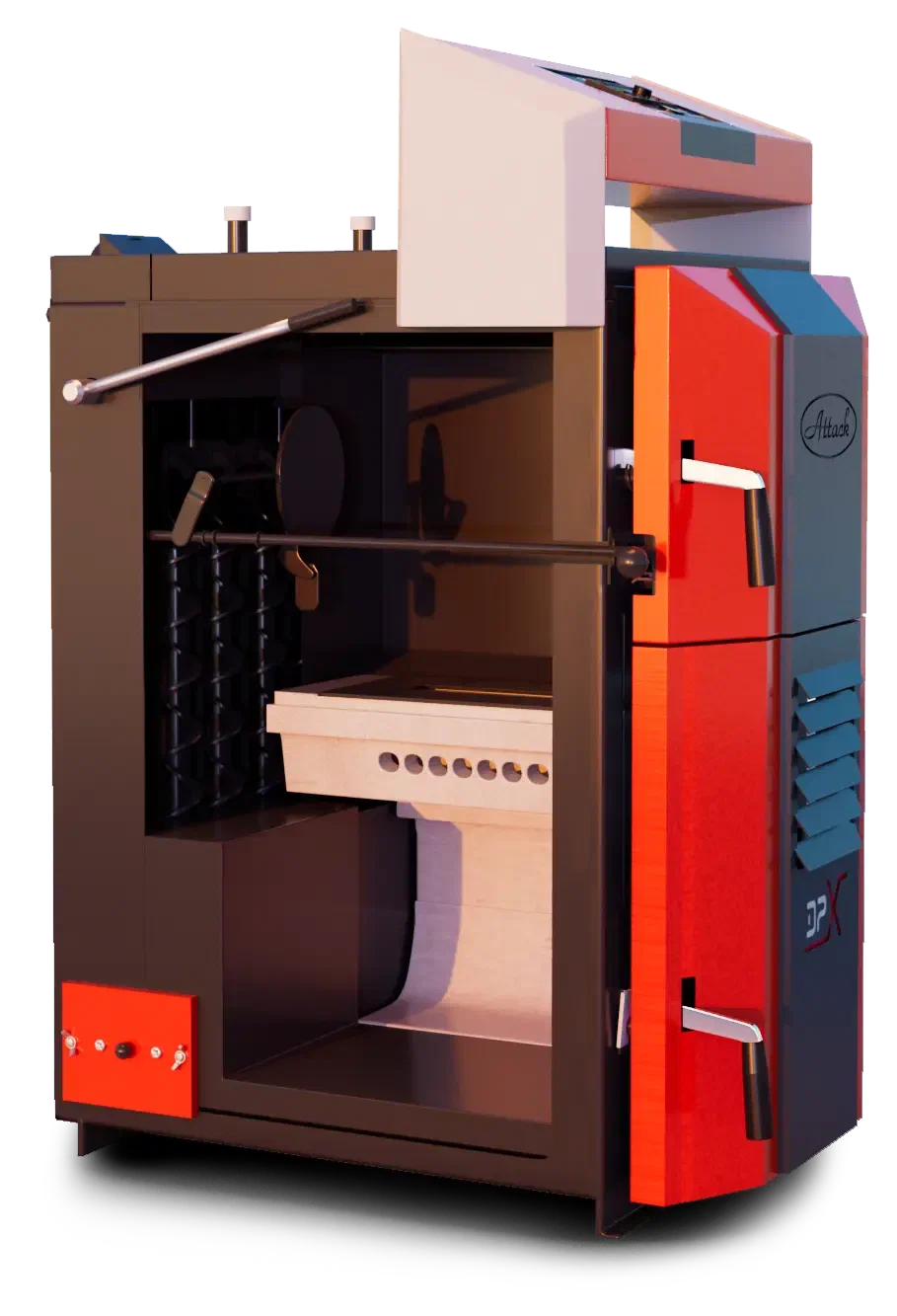

This interactive map shows a cutaway of the ATTACK DPX boiler. Select a marker to see what each component does.
Detailed specifications
Technical data
The technical table on the Slovak product page lists efficiency at 91.3%; accompanying text gives 91% and up to 92%. The product page and manual state a minimum buffer tank volume of 400 l and a recommended volume of 800 l; the DPX 15 information sheets state a 600 l minimum. The table retains the product-page values, and these discrepancies are noted for verification.
| Parameter | Unit | DPX15 |
|---|---|---|
| Rated boiler output (STANDARD version) | kW | 15 |
| Output range (PROFI version) | kW | 7.5 – 15 |
| Heat exchanger surface area | m² | 1.98 |
| Loading chamber volume | dm³ | 82 |
| Loading door dimensions | mm | 235 × 445 |
| Required chimney draught | Pa | 23 |
| Maximum operating water pressure | kPa | 250 |
| Water-side pressure drop (ΔT 10 K) | kPa | 1.9 |
| Water-side pressure drop (ΔT 20 K) | kPa | 0.6 |
| Boiler weight | kg | 370 |
| Flue outlet diameter | mm | 150 |
| Boiler height – A | mm | 1 240 |
| Boiler width – B | mm | 702 |
| Boiler depth – C | mm | 1 000 |
| Loading chamber depth – D | mm | 400 |
| External thread diameter of flow connection – E | ″ | G 2 |
| External thread diameter of return connection – F | ″ | G 2 |
| Cooling loop position – G | mm | 507 |
| Flow connection position – H | mm | 778 |
| Ingress protection rating | IP | 21 |
| Electrical input | W | 32 |
| Boiler efficiency | % | 91.3 |
| Boiler class by CO emissions (EN 303-5) | — | 5 |
| Flue-gas temperature at rated output | °C | 170 |
| Flue-gas mass flow at rated output | kg/s | 0.019 |
| Maximum noise level | dB | 65 |
| Fuel | — | Logs with 12–20% moisture content, 80–150 mm diameter |
| Average fuel consumption | kg/h | 3.9 |
| Estimated seasonal consumption | — | 1 kW = 0,9 m³ |
| Maximum log length | mm | 350 |
| Burn time at rated output | h | 3 |
| Boiler water volume | l | 80 |
| Minimum buffer tank volume according to the product table | l | 400 |
| Recommended buffer tank volume | l | 800 |
| Supply voltage | V/Hz | ~230/50 |
| Heating water temperature setting range | °C | 65–90 |
| Room temperature setting range (PROFI version) | °C | 10–27 |
| Boiler controller contact rating (PROFI version) | A/V | 2 A / 230 V |
| Maximum A-weighted sound pressure level | dB(A) | 70 |
| Maximum C-weighted peak sound pressure level | Pa | 63 |
| Minimum return water temperature | °C | 65 |
| Boiler operating water temperature | °C | 80–90 |
